Mobile Fuel Station
Refueling Equipment
Portable petrol station for providing gasoline or diesel in areas where fuel supply outlets are no available

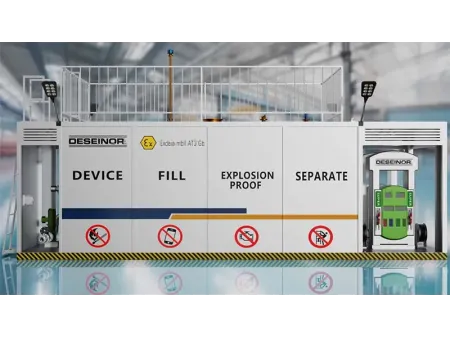

The mobile fuel station is a fully integrated, portable fueling solution that combines an explosion-proof fuel tank, fuel dispensing system, and monitoring equipment into a single unit. Designed for deployment in areas without permanent fueling infrastructure, it enables safe and efficient on-site refueling of vehicles or machinery with gasoline or diesel.
- Certified to meet explosion-proof safety standards and compliant with UL requirements
DESEINOR mobile fuel stations utilize barrier explosion-proof technology, which prevents ignition or detonation even in extreme conditions such as fire exposure, static discharge, collision, lightning, or welding sparks. The system ensures operational safety during transport and use in remote or high-risk locations.
Widely used across bus depots, ports, airports, construction sites, and industrial fleets, this solution supports flexible deployment and reliable fuel access in areas where traditional stations are not feasible.
| Max. dimensions (without guardrail height) | Length | 5500-14000mm |
| With | 2900mm | |
| Height | 3200mm | |
| Rated capacity | 5-50m³ | |
| Weight (unfilled) | 2600-24200kg | |
| Temperature range | -20℃ to 40℃ | |
| Manhole diameter | 580mm | |
| Emergency pressure relief | 21-35kPa | |
| Breathing valve | DN50-295Pa~2000Pa | |
| Barrier and anti-explosion material | IV type | |
| Coating | Epoxy zinc rich primer epoxy MIO intermediate coating polyurethane topcoat | |
| Working voltage | Three-phase five-wire 380V | |
| Max. power (per skid-mounted station) | 8kW or 14kW | |
| Type (customizable single/double compartment) | Model (V/W single/double compartment) (Z/Q diesel/gasoline) | Number of compartments | Compartment capacity (customizable) (m³) |
| 5m³ single compartment/1 fuel type (diesel) | 1 | 5 | |
| 5m³ single compartment/1 fuel type (gasoline) | 1 | 5 | |
| 10m³ single compartment/1 fuel type (diesel) | 1 | 10 | |
| 10m³ single compartment/1 fuel type (gasoline) | 1 | 10 | |
| 10m³ double compartment/2 fuel types (diesel/gasoline) | 2 | 5 5 | |
| 15m³ single compartment/1 fuel type (diesel) | 1 | 15 | |
| 15m³ single compartment/1 fuel type (gasoline) | 1 | 15 | |
| 15m³ double compartment/2 fuel types (diesel/gasoline) | 2 | 5 10 | |
| 20m³ single compartment/1 fuel type (diesel) | 1 | 20 | |
| 20m³ single compartment/1 fuel type (gasoline) | 1 | 20 | |
| 20m³ double compartment/1 fuel type (diesel/gasoline) | 2 | 10 10 | |
| 25m³ single compartment/1 fuel type (diesel) | 1 | 25 | |
| 25m³ single compartment/1 fuel type (gasoline) | 1 | 25 | |
| 25m³ double compartment/1 fuel type (diesel/gasoline) | 2 | 10 15 | |
| 30m³ double compartment/1 fuel type (diesel) | 2 | 15 15/10 20 | |
| 30m³ double compartment/2 fuel types (diesel/gasoline) | 2 | 15 15/10 20 | |
| 35m³ double compartment/1 fuel type (diesel) | 1 | 10 25/15 20 | |
| 35m³ double compartment/1 fuel type (gasoline) | 2 | 10 25/15 20 | |
| 35m³ double compartment/2 fuel types (diesel/gasoline) | 2 | 10 25/15 20 | |
| 40m³ double compartment/1 fuel type (diesel) | 2 | 20 20 | |
| 40m³ single compartment/1 fuel type (gasoline) | 1 | 20 20 | |
| 40m³ double compartment/2 fuel types (diesel/gasoline) | 2 | 20 20 | |
| 50m³ double compartment/1 fuel type (diesel) | 2 | 25 25 | |
| 50m³ double compartment/1 fuel type (gasoline) | 2 | 25 25 | |
| 50m³ double compartment/2 fuel types (diesel/gasoline) | 2 | 25 25 |
