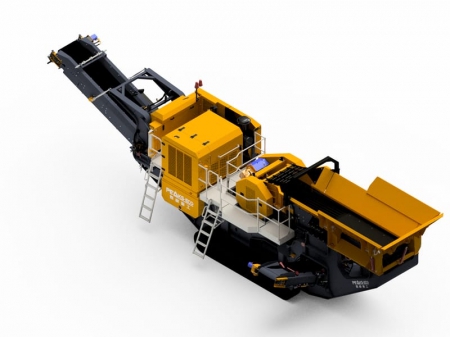

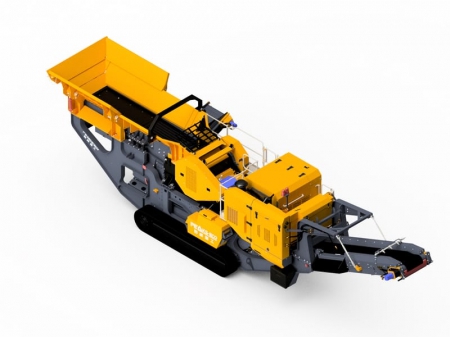

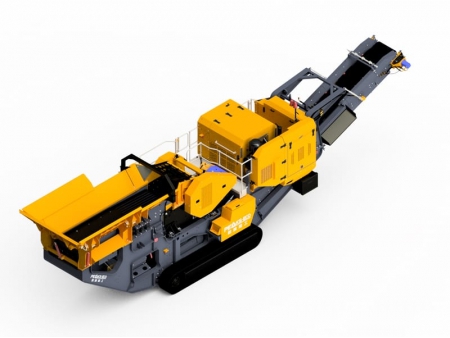

Mobile Jaw Crusher
PEAKS-ECO mobile jaw crusher combines a feeder, jaw crusher, and belt conveyor into a single, integrated unit, eliminating the hassle of complex on-site assembly and significantly reducing setup time. Its smart design offers exceptional flexibility, making it easy to maneuver not only on standard roads but also within the challenging environments of crushing sites.
Designed to enhance performance, our mobile jaw crusher offers outstanding versatility and ease of movement. Its compact size allows for convenient transportation, while its durable construction ensures reliable performance even in the most demanding conditions. This mobility saves valuable time and ensures quick, effortless access to work areas, helping you maximize productivity.
- Mines
- Highways
- Railways
- Bridges
- Urban Construction Waste Treatment
- Power System: Offers multiple drive options, including external power supply and dual fuel (electric and diesel), to meet diverse operational requirements
- Variable Frequency System: Equipped with a variable frequency drive to enable low-current startup, prevent motor overload, ensure smooth operation, and reduce energy consumption
- Electrical Control System: Features a dual-layer cabinet with PLC control, vibration isolation, dustproofing, and moisture resistance
- Main Unit System: Designed with a large-stroke, high-strength modular structure; delivers powerful performance and high reliability
- Variable Frequency Feeding Technology: Automatically adjusts feeding speed to keep the main unit operating at full load, thereby increasing output
- Other Features: Wireless remote control for convenient and safer operation. Optional equipment includes iron removal systems and spray dust suppression systems
| Model | | | | | | |
| Max. feeding size (mm) | 560 | 560 | 630 | 630 | 700 | 800 |
| Feeding height (mm) | 4150 | 4200 | 4150 | 4200 | 4300 | 4800 |
| Crusher model | C106 | C106 | JW42 | JW42 | C116 | C120 |
| Crusher power (kW) | 110 | 110 | 110 | 110 | 132 | 160 |
| Discharge size (mm) | 70-200 | 70-200 | 75-175 | 75-175 | 70-200 | 70-200 |
| Capacity (t/h) | 130-500 | 130-500 | 135-380 | 135-380 | 150-520 | 175-610 |
| Working power (kW) | 138 | 142 | 138 | 142 | 168 | 207 |
| Dimensions (L×W×H) (m) | 15.5×4.0×4.0 | 16.5×3.5×4.0 | 15.5×4.0×4.0 | 16.0×3.5×3.5 | 17.0×4.0×4.0 | 18.0×4.0×4.0 (assembled) |
| Machine weight (t) | 50 | 50 | 50 | 50 | 60 | 75 |
