Powder Metallurgy Vision Inspection Machine

Request a Quote

Website: http://ckw-group.com/2-2-powder-metallurgy-vision-inspection-machine.html

Optical sorting machine with 9 CCD cameras for quality assurance testing of powder metallurgy products such as powdered metal bushings

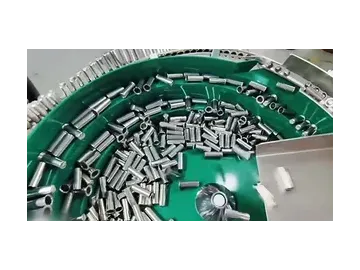

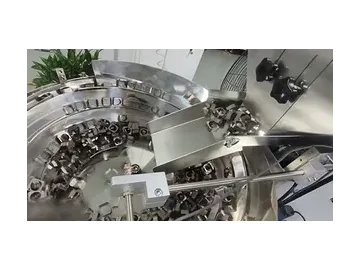

The powder metallurgy vision inspection machine is designed for the automated inspection of sintered metal components such as powdered metal bushings and other precision parts. Featuring an automatic elevator feeder followed by vibration bowl feeding, the system ensures consistent part orientation and smooth operation throughout high-speed production.

Powered by a 360° AI visual inspection system and equipped with 9 industrial CCD cameras, this vision inspection machine accurately detects:

Both dimensional inconsistencies and surface flaws.
Inspection speed: Up to 200 pcs/min
Measurement precision: ±0.02 mm

Inspection Cases

Application

Dimensional Measurements
Outer diameter
Inner diameter (hole)
Thickness
Custom dimensions per your technical drawings

Surface Defect Detection
Dents
Internal hole defects
Other visible imperfections

Guarantee reliable quality assurance for your powdered metal parts, reach out to see how this system can be tailored to your product specifications.

Specifications

General	Power		1.8 kW
	Air pressure		0.4-0.6Mpa,air inlet pipe Ø16mm
	Machine dimensions		1100(L)×1700(W)×1800(H)mm
	Machine weight		350kg
	Working conditions		Less than 90% RH
Visual inspection	Inspection speed		Design speed: 80-3000 pcs/min
	CDD Camera	Image sensor	Basler (German)
		Resolution	2560×1920,1280×1024
		Inspection accuracy	±0.01mm
	Lens	Optical lens	Custom lens
		Depth of field (DoF)	0.2-3mm
	Light source		AOI light source
Feeding	Precision belt feed system		Precision belt is made from special conductive material through integrated forming process,ensuring high accuracy (customized)
