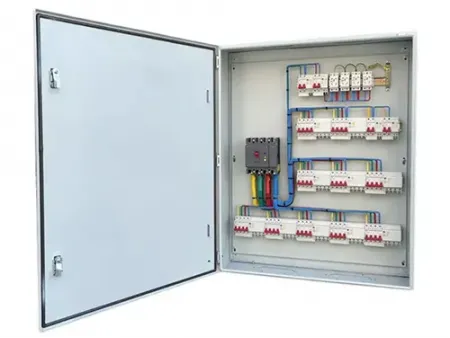

Power Distribution Box
Power Distribution Panels
- Rated Voltage (VAC): 220 / 380
- Corrosion Protection Grade:WF2
- Rated Current (A):10–100A
- Explosion-Proof Mark:ExdeIICT4 / DIPA20 / TA, T4
- Number of Circuits:4, 6, 8, 10, 12
- Circuit Breaker Brand & Model:Schneider / ABB / Siemens / CHNT / Delixi
- Protection Grade:IP65
- Enclosure Material:Powder-coated carbon steel
All the above parameters can be customized according to customer requirements.
The JXF power distribution box is part of the temporary site power box or power and lighting distribution series, typically used as terminal distribution equipment. The JXF series is designed for a service life of 8–10 years, which can be extended up to 15 years through optimized load management and regular maintenance. The standard JXF distribution box supports a maximum current of 250 A, with the power model expandable to 400 A, suitable for single-phase 240 V or three-phase systems of 450 V and below.
- Civil use: Suitable for lighting distribution and small power control in hotels, apartments, high-rise buildings, shopping malls, and schools, such as corridor lighting and air-conditioning socket circuits.
- Industrial use: Applied in factories, ports, stations, airports, warehouses, and hospitals for power distribution and equipment control, including motor start-stop protection and power allocation for production lines.

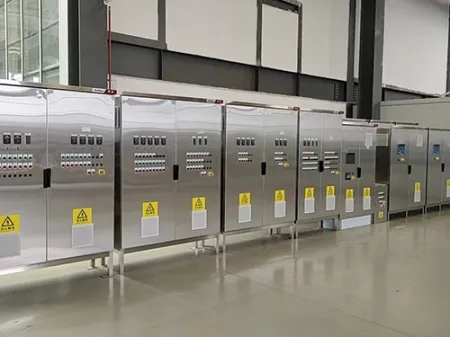

How to select a suitable material for a Low Voltage Distribution Cabinet?
Material selection depends on the operating environment and budget. In harsh environments such as coastal areas, stainless steel 316L is recommended for its superior corrosion resistance and long service life. For indoor installations, powder-coated mild steel is generally sufficient and offers better cost efficiency.
What material options are available for manufacturing Power Station Electrical Cabinets?
Available materials include low-carbon steel, stainless steel 201, stainless steel 304, stainless steel 316, and aluminum. Each material provides different levels of durability and corrosion resistance, allowing selection according to environmental and operational needs.
