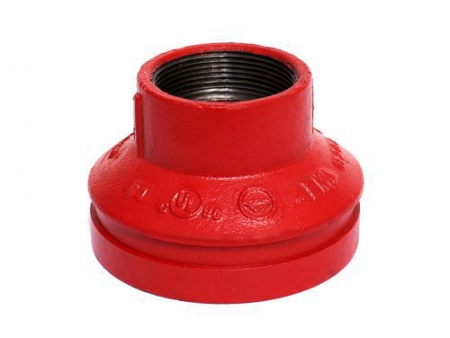

Threaded concentric reducers are cone-shaped pipe fittings that have grooves and internal threads for connection. They reduce the size of the pipeline in a symmetrical and concentric manner while keeping the centerlines of the two pipes aligned. This product achieves mechanical coupling by using a set of grooves at the ends of the pipes and fittings. Typically, one end is grooved using a specialized tool, and then the joint is clamped onto the groove using bolts or a similar mechanism. The other end is threaded.

Features
  • Made of materials such as ductile iron, stainless steel, or carbon steel, which provide strong wear resistance and corrosion resistance.
  • Available in various sizes and pressure ratings, suitable for different applications.
  • Enables the connection of two pipes with different diameters.
Recommended Applications

Threaded concentric reducers are commonly used in industrial and commercial piping systems, such as gas pipelines, water supply pipelines, etc., where the size of the pipeline needs to be reduced to accommodate changes in flow or pressure.

Key Specifications
  • Available sizes: 1 1/4×1 inch~12×4 inch |DN32×25~DN300×100
  • Working pressure: 300PSI/2.07MPa
  • Certificate: FM/UL/CE certified
  • Coating: epoxy/galvanized
  • Color: red/orange/white, etc.
  • Material: ductile iron
Specifications

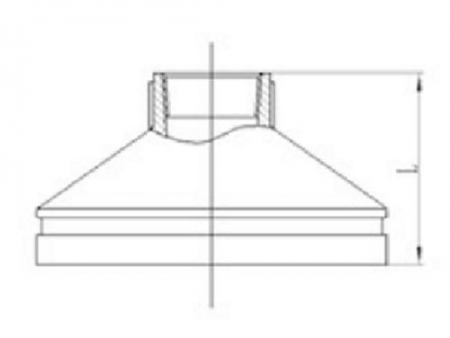

Nominal Size Pipe OD Dimensions
mm/in mm/in L mm/in
32×25 / 1 1/4×1 42.4×33.7 / 1.660×1.315 64 / 2.51
40×32 / 1 1/2×1 1/4 48.3×42.4 / 1.900×1.660 64 / 2.51
50×25 / 2×1 60.3×33.7 / 2.375×1.315 64 / 2.51
50×32 / 2×1 1/4 60.3×42.4 / 2.375×1.660 64 / 2.51
50×40 / 2×1 1/2 60.3×48.3 / 2.375×1.900 64 / 2.51
65×25 / 2 1/2×1 73×33.7 / 2.875×1.315 64 / 2.51
65×32 / 2 1/2×1 1/4 73×42.4 / 2.875×1.660 64 / 2.51
65×40 / 2 1/2×1 1/2 73×48.3 / 2.875×1.900 64 / 2.51
65×50 / 2 1/2×2 73×60.3 / 2.875×2.375 64 / 2.51
65×25 / 2 1/2×1 76×33.7 / 3.000×1.315 64 / 2.51
65×32 / 2 1/2×1 1/4 76×42.4 / 3.000×1.660 64 / 2.51
65×40 / 2 1/2×1 1/2 76×48.3 / 3.000×1.900 64 / 2.51
65×50 / 2 1/2×2 76×60.3 / 3.000×2.375 64 / 2.51
80×25 / 3×1 88.9×33.7 / 3.500×1.315 64 / 2.51
80×32 / 3×1 1/4 88.9×42.4 / 3.500×1.660 64 / 2.51
80×40 / 3×1 1/2 88.9×48.3 / 3.500×1.900 64 / 2.51
80×50 / 3×2 88.9×60.3 / 3.500×2.375 64 / 2.51
80×65 / 3×2 1/2 88.9×76.1 / 3.500×3.000 64 / 2.51
100×25 / 4×1 108.0×33.7 / 4.250×1.315 76 / 2.99
100×32 / 4×1 1/4 108.0×42.4 / 4.250×1.660 76 / 2.99
100×40 / 4×1 1/2 108.0×48.3 / 4.250×1.900 76 / 2.99
100×50 / 4×2 108.0×60.3 / 4.250×2.375 76 / 2.99
100×65 / 4×2 1/2 108.0×76.1 / 4.250×3.000 76 / 2.99
100×80 / 4×3 108.0×88.9 / 4.250×3.500 76 / 2.99
100×25 / 4×1 114.3×33.7 / 4.500×1.315 76 / 2.99
100×32 / 4×1 1/4 114.3×42.4 / 4.500×1.660 76 / 2.99
100×40 / 4×1 1/2 114.3×48.3 / 4.500×1.900 76 / 2.99
100×50 / 4×2 114.3×60.3 / 4.500×2.375 76 / 2.99
100×65 / 4×2 1/2 114.3×76.1 / 4.500×3.000 76 / 2.99
100×80 / 4×3 114.3×88.9 / 4.500×3.500 76 / 2.99
125×25 / 5×1 133.0×33.7 / 5.250×1.315 89 / 3.5
125×32 / 5×1 1/4 133.0×42.4 / 5.250×1.660 89 / 3.5
125×40 / 5×1 1/2 133.0×48.3 / 5.250×1.900 89 / 3.5
125×50 / 5×2 133.0×60.3 / 5.250×2.375 89 / 3.5
125×25 / 5×1 139.7×33.7 / 5.500×1.315 89 / 3.5
125×32 / 5×1 1/4 139.7×42.4 / 5.500×1.660 89 / 3.5
125×40 / 5×1 1/2 139.7×48.3 / 5.500×1.900 89 / 3.5
125×50 / 5×2 139.7×60.3 / 5.500×2.375 89 / 3.5
125×65 / 5×2 1/2 139.7×76.1 / 5.500×3.000 89 / 3.5
125×80 / 5×3 139.7×88.9 / 5.500×3.500 89 / 3.5
125×100 / 5×4 139.7×114.3 / 5.500×4.500 89 / 3.5
125×25 / 5×1 141.3×33.7 / 5.563×1.315 89 / 3.5
125×32 / 5×1 1/4 141.3×42.4 / 5.563×1.660 89 / 3.5
125×40 / 5×1 1/2 141.3×48.3 / 5.563×1.900 89 / 3.5
125×50 / 5×2 141.3×60.3 / 5.563×2.375 89 / 3.5
125×65 / 5×2 1/2 141.3×76.1 / 5.563×3.000 89 / 3.5
125×80 / 5×3 141.3×88.9 / 5.563×3.500 89 / 3.5
150×25 / 6×1 159.0×33.7 / 6.250×1.315 102 / 4.01
150×32 / 6×1 1/4 159.0×42.4 / 6.250×1.660 102 / 4.01
150×40 / 6×1 1/2 159.0×48.3 / 6.250×1.900 102 / 4.01
150×50 / 6×2 159.0×60.3 / 6.250×2.375 102 / 4.01
150×65 / 6×2 1/2 159.0×76.1 / 6.250×3.000 102 / 4.01
150×80 / 6×3 159.0×88.9 / 6.250×3.500 102 / 4.01
150×25 / 6×1 165.1×33.7 / 6.500×1.315 102 / 4.01
150×32 / 6×1 1/4 165.1×42.4 / 6.500×1.660 102 / 4.01
150×40 / 6×1 1/2 165.1×48.3 / 6.500×1.900 102 / 4.01
150×50 / 6×2 165.1×60.3 / 6.500×2.375 102 / 4.01
150×65 / 6×2 1/2 165.1×76.1 / 6.500×3.000 102 / 4.01
150×80 / 6×3 165.1×88.9 / 6.500×3.500 102 / 4.01
150×100 / 6×4 165.1×114.3 / 6.500×4.500 102 / 4.01
150×25 / 6×1 168.3×33.7 / 6.625×1.315 102 / 4.01
150×32 / 6×1 1/4 168.3×42.4 / 6.625×1.660 102 / 4.01
150×40 / 6×1 1/2 168.3×48.3 / 6.625×1.900 102 / 4.01
150×50 / 6×2 168.3×60.3 / 6.625×2.375 102 / 4.01
200×25 / 8×1 219.1×33.7 / 8.625×1.315 127 / 5
200×32 / 8×1 1/4 219.1×42.4 / 8.625×1.660 127 / 5
200×40 / 8×1 1/2 219.1×48.3 / 8.625×1.900 127 / 5
200×50 / 8×2 219.1×60.3 / 8.625×2.375 127 / 5
200×65 / 8×2 1/2 219.1×76.1 / 8.625×3.000 127 / 5
200×80 / 8×3 219.1×88.9 / 8.625×3.500 127 / 5
200×100 / 8×4 219.1×114.3 / 8.625×4.500 127 / 5
