Grooved Concentric Reducer

Request a Quote

View All: http://grooved-fittings.com/2-1-grooved-concentric-reducer.html

Grooved pipe fittings

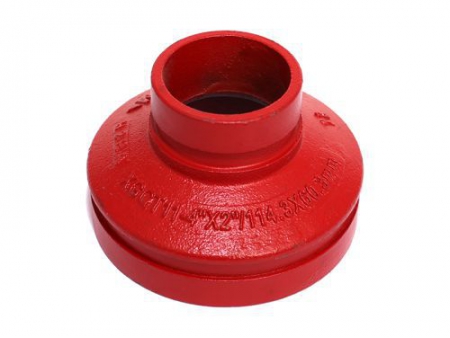

Grooved concentric reducers are cone-shaped pipe fittings with grooved connections that reduce the size of a pipeline in a symmetrical and concentric manner, while keeping the centerlines of the two pipes aligned.

Features

Made of materials such as ductile iron, stainless steel, or carbon steel, providing high wear resistance and corrosion resistance.
Available in various sizes and pressure ratings to accommodate different applications.
Enables to join the two pipes of different diameters.

Recommended Applications

Grooved concentric reducer is commonly used in industrial and commercial piping systems, such as gas pipelines, water supply pipelines, etc., where a reduction of the pipe size is required to accommodate changes in flow or pressure.

Key Specifications

Available sizes: 1 1/4×1 inch~12×10 inch |DN32×25~DN300×250
Working pressure: 300PSI/2.07MPa
Certificate: FM/UL/CE certified
Coating: epoxy/galvanized
Color: red/orange/white, etc.
Material: ductile iron, stainless steel or carbon steel

Specifications

Nominal Size	Pipe OD	Dimensions
mm/in	mm/in	L mm/in
32x25 / 1 1/4x1	42.4x33.7 / 1.660x1.315	64 / 2.51
40x25 / 11/2x1	48.3x33.7 / 1.900x1.315	64 / 2.51
40x32 / 1 1/2×1 1/4	48.3x42.4 / 1.900x1.660	64 / 2.51
50x25 / 2x1	60.3 x 33.7 / 2.375x1.315	64 / 2.51
50x32 / 2x1 1/4	60.3x42.4 / 2.375x1.660	64 / 2.51
50x40 / 2x1 1/2	603x48.3 / 2.375x1.900	64 / 2.51
65x25 / 2 1/2x1	73.0 x 33.7 / 2.875x1.315	64 / 2.51
65x32 / 2 1/2x1 1/4	73.0x42.4 / 2.875x1.660	64 / 2.51
65x40 / 2 1/2x1 1/2	73.0x48.3 / 2.875x1.900	64 / 2.51
65x50 / 2 1/2x2	73.0 x 60.3 / 2.875x2.375	64 / 2.51
65x32 / 2 1/2x1 1/4	76.1 x 42.4 / 3.000x1.660	64 / 2.51
65x40 / 2 1/2x1 1/2	76.1x48.3 / 3.000x1.900	64 / 2.51
65x50 / 2 1/2x2	76.1x60.3 / 3.000 x 2.375	64 / 2.51
80x32 / 3x1 1/4	88.9x42.4 / 3.500x1.660	55 / 2.17
80x40 / 3x1 1/2	88.9 x 48.3 / 3.500x1.900	55 / 2.17
80x50 / 3x2	88.9 x 60.3 / 3.500x2.375	55 / 2.17
80x65 / 3x2 1/2	88.9x76.1 / 3.500 x 3.000	55 / 2.17
100x65 / 4x2 1/2	108.0 x 76.1 / 4.250 x 3.000	76 / 2.99
100x80 / 4x3	108.0x88.9 / 4.250 x 3.500	76 / 2.99
100x32 / 4x1 1/4	114.3x42.4 / 4.500x1.660	60 / 2.36
100x40 / 4x1 1/2	114.3x48.3 / 4.500x1.900	60 / 2.36
100x50 / 4x2	114.3x60.3 / 4.500x2.375	60 / 2.36
100x65 / 4x2 1/2	114.3x76.1 / 4.500 x 3.000	60 / 2.36
100x80 / 4x3	114.3x88.9 / 4.500 x 3.500	60 / 2.36
125x50 / 5x2	139.7x60.3 / 5.500x2.375	65 / 2.56
125x65 / 5x2 1/2	139.7x76.1 / 5.500 x 3.000	65 / 2.56
125x80 / 5x3	139.7x88.9 / 5.500 x 3.500	65 / 2.56
125x100 / 5x4	139.7x114.3 / 5.500 x 4.500	65 / 2.56
150x50 / 6x2	159.0x60.3 / 6.250x2.375	70 / 2.76
150x65 / 6x2 1/2	159.0x76.1 / 6.250 x 3.000	70 / 2.76
150x80 / 6x3	159.0x88.9 / 6.250 x 3.500	70 / 2.76
150x100 / 6x4	159.0x108.0 / 6.250 x 4.250	70 / 2.76
150x100 / 6x4	159.0x114.3 / 6.250x4.500	70 / 2.76
150x125 / 6x5	159.0x133.0 / 6.250x5.250	70 / 2.76
150x125 / 6x5	159 0x139 7 / 6.250 x 5.500	70 / 2.76
150x50 / 6x2	165.1 x60.3 / 6.500 x 2.375	102 / 4.01
150x65 / 6x2 1/2	165.1x76.1 / 6.500 x 3.000	102 / 4.01
150x80 / 6x3	165.1x88.9 / 6.500 x 3.500	102 / 4.01
150x100 / 6x4	165.1x114.3 / 6.500x4.500	102 / 4.01
150x125 / 6x5	165.1x139.7 / 6.500x5.500	102 / 4.01
150x50 / 6x2	168.3 x 60.3 / 6.625x2.375	70 / 2.76
150x65 / 6x2 1/2	168.3x76.1 / 6.625 x 3.000	70 / 2.76
150x80 / 6x3	168.3 x 88.9 / 6.625x3.500	70 / 2.76
150x100 / 6x4	168.3x114.3 / 6.625x4.500	70 / 2.76
150x125 / 6x5	168.3x139.7 / 6.625 x 5.500	70 / 2.76
200 x 50 / 8x2	219.1x60.3 / 8.625x2.375	85 / 3.35
200x65 / 8x2 1/2	219.1x76.1 / 8 625x3.000	85 / 3.35
200 x 80 / 8x3	219.1x88.9 / 8.625x3.500	85 / 3.35
200x100 / 8x4	219.1 x 108.0 / 8.625x4.250	85 / 3.35
200x100 / 8x4	219.1 x 114.3 / 8.625x4.500	85 / 3.35
200x125 / 8x5	219.1 x 139.7 / 8.625 x 5.500	85 / 3.35
200x150 / 8x6	219.1 x 159.0 / 8.625x6.250	85 / 3.35
200x150 / 8x6	219.1 x 165.1 / 8.625x6.500	85 / 3.35
200x150 / 8x6	219.1 x 168.3 / 8.625x6.625	85 / 3.35

Where are grooved fittings used?

Grooved fittings are mainly used in fire sprinkler piping systems, drinking water supply pipelines, oil extraction pipelines, and other applications, making them a versatile pip fitting.

What are the advantages of using a grooved piping system?

Using a grooved piping system can save installation costs, reduce pollution, and allow for quick installation, as well as minimizes vibration and noise for connected pipes.
