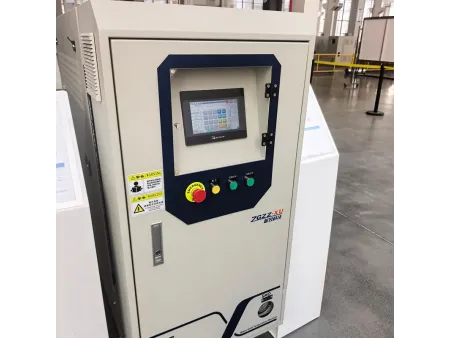

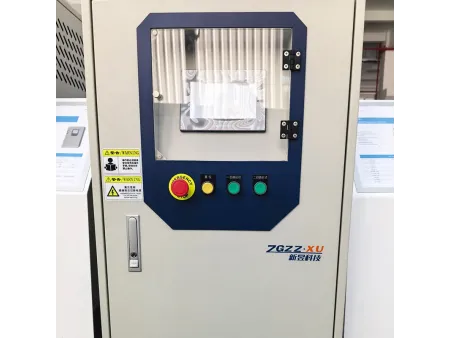

Water Based Mold Temperature Controller
- Cooling function can be started with one click through the HMI, without manual pipeline switching, improving operation efficiency.
- Isolated electrical control box extends the service life of the electrical system and reduces later maintenance costs.
- Heating tubes are designed for high-temperature water environments, with high temperature resistance and corrosion resistance, ensuring temperature control accuracy (within ±0.5℃)
Die casting in the automotive parts industry and injection molding industry, applied to mold cores, thin-walled parts, structural components, and large sliders, with a maximum heating temperature up to 220℃.
| Model | | | |
| Max. heating temperature | 180℃ | 180℃ | 220℃ |
| Power supply | 3N-380V-50Hz | 3N-380V-50Hz | 3N-380V-50Hz |
| Heat transfer medium | Water | Water | Water |
| Cooling mode | Indirect cooling | Indirect cooling | Indirect cooling |
| Heating power | 24kW 24kW | 24kW 24kW | 24kW 24kW |
| Pump power | 1.5kW 1.5kW | 3kW 3kW | 3kW 3kW |
| Max. pump head | 60 60m | 80 80m | 110 110m |
| Max. pump flow | 90 90L/min | 100 100L/min | 150 150L/min |
| Max. power consumption | 51kW | 54kW | 54kW |
| Safety & alarm function | Pump reversal/Phase lack/Water shortage/Overtime/Overload /Undervoltage | ||
| Cooling water piping | ZG3/4 inch | ZG3/4 inch | ZG3/4 inch |
| Circulating water piping | ZG3/4 inch | ZG3/4 inch | ZG1/inch |
| Machine dimensions | 1260×600×1400mm | 1370×600×1440mm | 1500×670×1500mm |
- High-Precision Control Technology
PLC HMI combination with closed-loop adjustment to ensure stability.
- Stainless Steel Integrated Pipeline
One-piece stainless steel piping reduces the number of joints compared with traditional spliced pipelines. Real-time monitoring of each pipeline flow, with HMI one-click cooling start function, no need for manual pipeline switching, improving operation efficiency.
- Isolated Electrical Control Box
The electrical control box is physically separated from the heating zone and water system, reducing the impact of high temperature and moisture on electrical components (such as PLC, relays, circuit boards), and extending the service life of the electrical system.
- High-Definition HMI Screen
Displays temperature curves, flow data, and equipment status (running/alarm/standby) clearly. Supports touch operation, parameter setting, and historical record queries.
- Heating Tubes for High-Temperature Water Environments
Designed with high temperature resistance and corrosion resistance (suitable for complex water quality scenarios), with high heating efficiency and fast thermal response, ensuring temperature control accuracy (within ±0.5℃).
- Intelligent Communication and Data Acquisition
Supports standard industrial communication protocols (such as Modbus RTU/TCP, Profinet). Can collect temperature, flow, and operating status data in real time and upload to factory management systems (such as MES, SCADA), enabling digital monitoring and traceability of the production process. Can also link with other equipment (such as die casting machines, injection molding machines, robots) through signal interfaces and adapt to different brands of sensors and actuators, making it easy to integrate into existing production lines or future upgrades.
The water based mold temperature controller uses water as the heat transfer medium. Through heating, cooling, and circulation control, it precisely regulates the temperature of molds or other controlled equipment. The core principle is: heating tubes heat the water, or the cooling circuit (such as by connecting chilled water) lowers the temperature of the water. A circulation pump then delivers the constant-temperature water into the internal channels of the mold (or other equipment requiring temperature control). Heat exchange achieves dynamic balance of mold temperature, while sensors provide real-time feedback to the control system (such as PLC) for closed-loop adjustment, ensuring temperature remains within the set range (accuracy typically ±0.5℃ to ±1℃).
- Cooling tower
- Water based mold temperature controller
- Die casting mold
- Cooling water circuit
