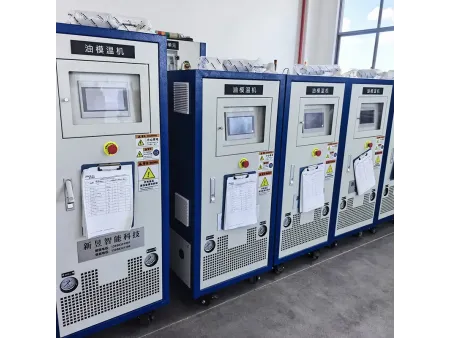

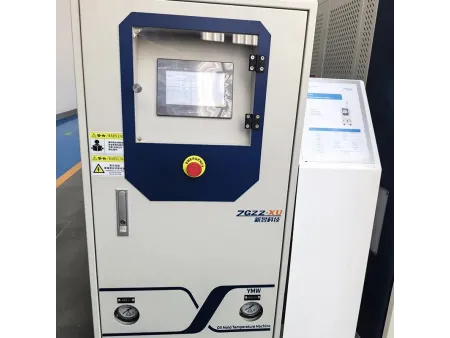

Oil Based Mold Temperature Controller
- High heating temperature, control range 45℃ to 350℃
- More than 95% of the medium can be recycled, reducing heat transfer oil waste and environmental pollution
| Model | | | |
| Max. heating temperature | 320℃ | 320℃ | 320℃ |
| Temperature control accuracy | PID±1℃ | PID±1℃ | PID±1℃ |
| Power supply | 3N-380V-50Hz | 3N-380V-50Hz | 3N-380V-50Hz |
| Heat transfer medium | Heat transfer oil | Heat transfer oil | Heat transfer oil |
| Cooling mode | Indirect cooling | Indirect cooling | Indirect cooling |
| Heating power | 24kW 24kW | 30kW 30kW | 40kW 40kW |
| Pump power | 1.1kW 1.1kW | 3kW 3kW | 3kW 3kW |
| Max. pump flow | 60L/min 60L/min | 100L/min 100L/min | 100L/min 100L/min |
| Max. pump pressure | 6kg/cm² 6kg/cm² | 8kg/cm² 8kg/cm² | 8kg/cm² 8kg/cm² |
| Max. power consumption | 50kW | 66kW | 88kW |
| Safety & alarm function | Pump reversal/Phase lack/Water shortage/Overtime/Overload /Undervoltage | ||
| Cooling water piping | ZG3/4 inch | ZG3/4 inch | ZG3/4 inch |
| Circulating water piping | ZG3/4 inch | ZG3/4 inch | ZG3/4 inch |
| Machine dimensions | 1385×580×1838mm | 1385×580×1838mm | 1435×680×1938mm |
- Safety Design
Equipped with explosion-proof pressure relief devices, BY-PASS pressure relief circuits, and emergency oil tanks to prevent high-temperature and high-pressure accidents, protecting the system and pump.
- Intelligent Control
Supports PLC or imported microcomputer control, with fault self-diagnosis and display, making parameter adjustment and maintenance simple.
- Wide Temperature Range
Control range 45℃ to 350℃, suitable for multiple industries such as plastic molding, die casting, and rubber.
- Efficient Operation
Heating power can be switched (rapid heating/stable holding). Automatic exhaust at startup, supports immediate cooling oil return, ensuring efficiency and safety.
- Energy Saving and Environmental Protection
Oil pump with reverse oil return function, more than 95% of the medium can be recycled, reducing heat transfer oil waste and environmental pollution.
- Reliable Piping
All series use European and American high-temperature pipeline components, with good sealing, corrosion resistance, and high-temperature resistance, reducing leakage risks.
- Isolated Electrical Control Box
Electrical system is separated from high-temperature environments, extending the service life of electrical components.
- Smart Communication
Optional RS485, PLC, and remote communication interfaces, convenient for automation management and production line integration.
- Flexible Customization
Oil pump power and heating capacity can be customized as required, adaptable to different processes.
- Special Process Support
Optional negative pressure operation mode to meet specific production needs.
The oil based mold temperature controller uses heat transfer oil (such as mineral oil or synthetic oil) as the heat transfer medium. Through heating, circulation, and temperature feedback control, it achieves precise temperature regulation of industrial equipment. Its core advantages are strong high-temperature control capability and good temperature stability, applied to mold cold ends, mold frames, and cold end preheating.
- Cooling tower
- Oil based mold temperature controller
- Die casting mold
- Cooling water circuit
