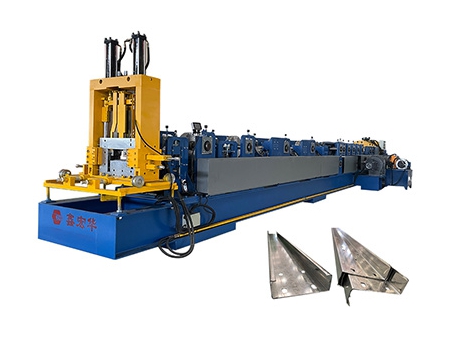

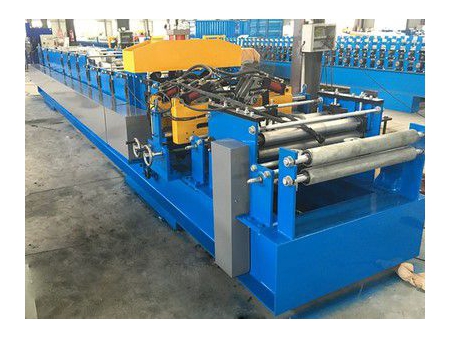

The Z purlin machine is a type of continuous roll forming equipment designed to produce Z purlins of various sizes according to specific requirements. Both web width and flange height can be adjusted manually or automatically. With full automation, the machine allows for size switching between 120mm and 300mm in just one minute via PLC control.

Z purlins play a crucial role in supporting roofing materials like steel structures by distributing the roof’s weight to the main structural framework of the building. Typically used in conjunction with other building components such as roofing and walls, Z purlins provide a stable framework for securely connecting these materials.

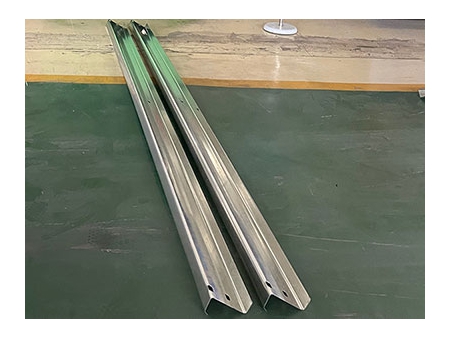

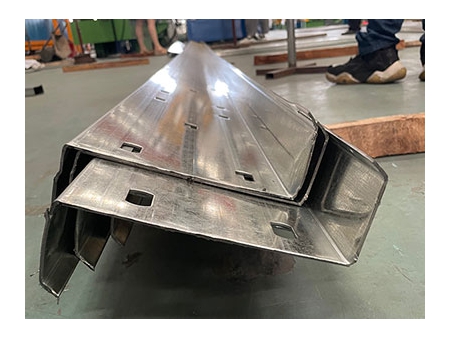

Samples

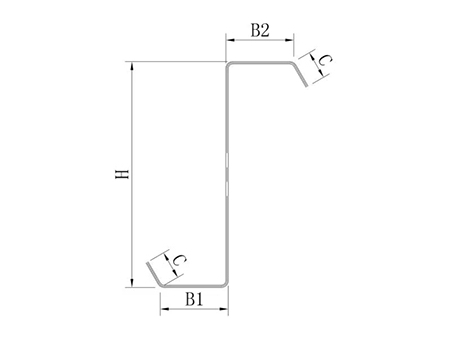

Profile Drawing
Z Purlin
Model Section Size
H B1 B2 C
Z120 120mm 55 mm 50 mm 16 mm
Z140 140 mm 55 mm 50 mm 16 mm
Z160 160 mm 67 mm 61 mm 16 mm
Z180 180 mm 67 mm 61 mm 18 mm
Z200 200 mm 67 mm 61 mm 18 mm
Z220 220 mm 78 mm 72 mm 18 mm
Z250 250 mm 78 mm 72 mm 20 mm
Z280 280 mm 78 mm 72 mm 20 mm
Z300 300 mm 78 mm 72 mm 20 mm

Z purlins are available in various sizes to accommodate different structural requirements of buildings and meet the specifications provided by manufacturers. These size variations are designed to adapt to different load-bearing needs, architectural designs, and local building regulations.

Specifications
Item Z purlin machine
Dimension 8500*1600*1500mm
Weight 7500kg
Motor Power 30kW
Oil Pump Power 5.5kW
Voltage 380V/3-phase/60Hz
Forming Steps 19
Forming Speed 8-25m/min
Forming Thickness 1.2-3.0mm (GI)
Effective Width 120-300mm
Effective Height 45-100mm
Edge Width 10-20mm
Details

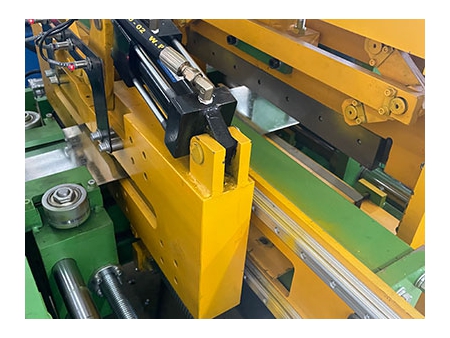

  • Hydraulic Pre-punching & Pre-cutting System

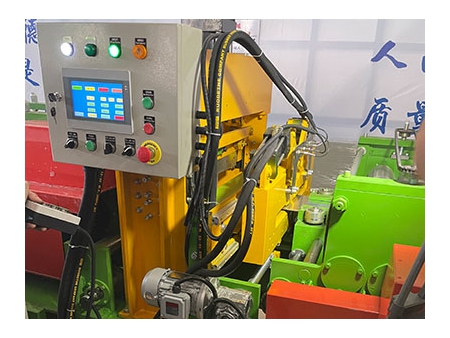

    Cutting length, cutting pieces, and punching are controlled by PLC controller

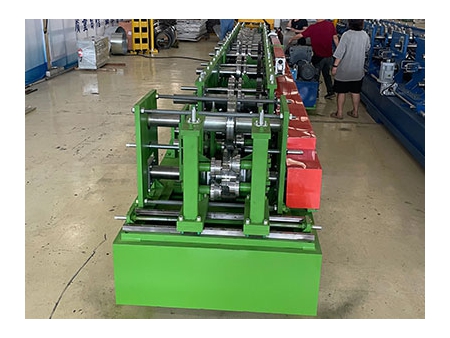

  • Roll Forming Unit

    This is the core of the machine, where the steel strip is progressively formed into a Z-shaped profile by passing through a series of rollers.

  • PLC Control System

    Automatic Z purlin roll forming machines are outfitted with computerized control systems, enabling operators to set and modify various parameters, including purlin dimensions and production speed.
