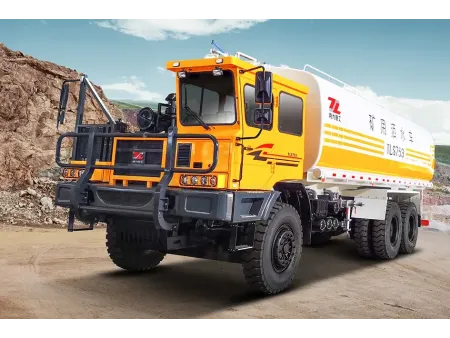

Dust Control Water Truck
Application
Dust control water truck is designed with water sprinkle and dust control functions and has cold starting device at low temperature and air conditioner, which is mainly applied to municipal sanitation, environmental protection, dust control and lower temperature in mine, yard coal, wharf, steel works, construction sites and so on. Besides, the truck can be used to clean and remove snow in winter.
Structure
The dust control water truck is composed of truck chassis, sprayer, water pump, liquid tank, conveying system, waterway system, air circuit system, rear operation platform, rotary snow broom and so on.
- Fog gun sprinkle system
- Rear swashing
- Middle swashing
- Front swashing and guardrail cleaning
Driving form | 6×4 |
Motor power | ≥228kw |
Max total weight | ≥25000kg |
Max speed | ≥80km/h |
Tire | 16PR,11.00R20 |
Wheel base | ≥4300+1350mm |
Curb weight | ≥8720Kg |
Axle load | ≥7000/18000mm |
Front tread | ≥2035mm |
Rear tread | ≥1850mm |
Total height of cab above ground | ≤3050 |
Effective volume of tank | ≥10m³, the water tank adopts composite tandem mechanism and made from yellow PE material |
Total rated power | ≥69kw |
Rated range | ≥120m |
Max cover area | ≥30000 |
Noise | ≤85dB |
Pressure of water pump | 1.5-2.0mpa |
Flow of spraying | ≥167 L/min |
Diameter of spraying particle | 20~200μm |
Pitching angle | -10~60° |
Level angle | ±90° |
Dimension of spraying machine | ≥3100x1700x2500mm |
Max width of left and right swashing | ≥25m |
Max width of front duckbilled sprayer | ≥6m |
Rotation speed of hydraulic motor | ≥1350rpm |
Rated rotation speed of hydraulic pump | ≥1900rpm |
Displacement of hydraulic pump/motor | ≥75/75 ml/r |
Displacement of hydraulic water pump/motor | ≥40/20 ml/r |
Number of sprayer | ≥ 90 |
Protection grade is no less than IP55. | |
Weight | ≥2700Kg |
Number of fan | ≥2 |
Centrifugal water pump with max flow of 40m³/h and max water pressure of 1.2MPa | |
Functions | front sprinkling, middle swashing, rear spraying and salt water spreading |
Water feeding method | stainless steel centrifugal water pump |
The rotary snow broom adopts full hydraulic control system to achieve lifting and left or right deflection | |
Diameter of broom | ≥810mm |
Effective length of broom | ≥3000mm |
Left and right deflection angle | ≥30°, parallel swing method |
The clearing width is parallel with main wheel tread. | |
Max rotation speed | ≥380 r/min |
Clearing thickness | ≥150mm |
Working speed | ≥40km/h |
Motor torque | ≥950N.m (continuous operation) |
Working flow | ≥250L/min |
Rated working pressure | ≥20Mpa |
Huiqiang design and manufacture a wide range of municipal sanitation equipment, we are a reliable dust control water truck manufacturer and supplier, offering waste collection and compaction equipment, garbage truck, road and street cleaning vehicle for environmental protection. With continuous research and development, Huiqiang offers quality dust control water truck with competitive price.
