Application

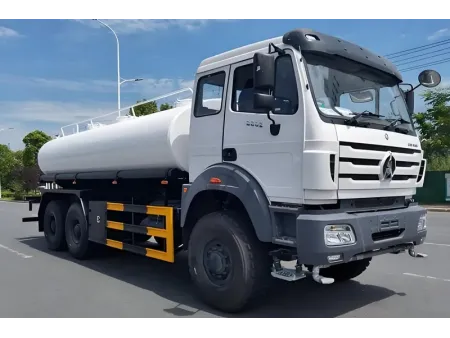

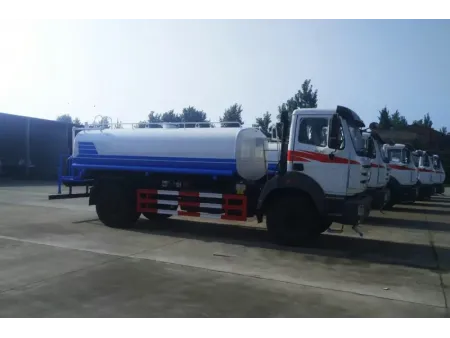

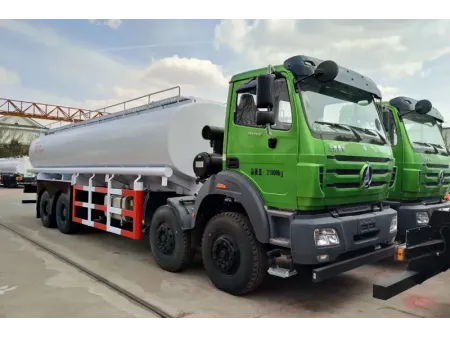

Water tank truck is mainly applied to low pressure sprinkling, irrigation in municipal road, plaza, highway, airport, wharf and other places. Besides, it can also be used in fire extinguishing in emergency conditions.

  • Middle side swashing angle is adjustable and swash pavement with strong detergency
  • Rear side fan-type nozzle can perform water sprinkling and decreasing dust
  • Rear platform with adjustable spray gun can be used to green irrigation
Technical parameter
Model 11203 5162 5251 52515
Rated power of motor 118 (KW) 132 (KW) 180 (KW) 180 (KW)
Cleaning width of low pressure ≥24 (m) ≥24 (m) ≥24 (m) ≥24 (m)
Water pressure 0.9 (Mpa) 0.9 (Mpa) 0.9 (Mpa) 0.9 (Mpa)
Water quantity <1000 (L/min) <1000 (L/min) <1000 (L/min) <1000 (L/min)
Working speed 0~25 (km/h) 0~25 (km/h) 0~25 (km/h) 0~25 (km/h)

The water tank is composed of tank body, front and rear shell cover, swash plate, decorative pattern board and access door.

Feature
1. The water tank is designed with a transverse swash plate to lower the impact force of water on the tank and enhance the stability of driving.
2. We adopt big capacity water tank and the water tank truck can perform longer continuously working.
3. The internal surface is treated with special efficient anticorrosion treatment.
4. Our water tank truck can be compatible with high pressure water pump with big flow and high pressure to achieve better cleaning effect.
5. The front spray-head and side swash-head is adjustable, which can realize big working angle.

Huiqiang design and manufacture a wide range of municipal sanitation equipment, we are a reliable water tank truck manufacturer and supplier, offering waste collection and compaction equipment, garbage truck, road and street cleaning vehicle for environmental protection. With continuous research and development, Huiqiang offers quality water tank truck with competitive price.
