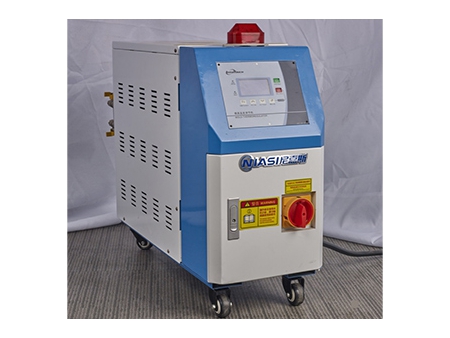

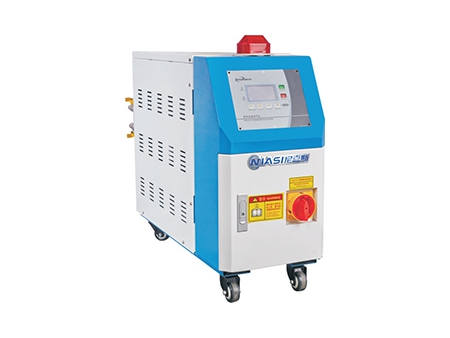

Temperature Control Units-Water Unit, NTW

Request a Quote

View All: http://conveyingsolution.com/3-1-ntw-ntw-temperature-control-units-water-unit.html

Mold temperature controller is the key to optimize your injection molding and operation productivity

The temperature control unit uses water as heat transfer medium, both direct cooling and indirect cooling modes are available for heat transferring. The direct cooling allows the temperature to be controlled in a range of 120-160℃, while the indirect cooling is specially applicable for high temperature up to 180℃.

Features:

Electric control box is placed separately, ensuring a better insulation effect
PID controller
Fully designed with safety devices and fault indication function, no professionals required for maintenance
Pipes are produced from 304 stainless steel
Automatic air exhausting function

Specification:

Model	NTW-06	NTW-09	NTW-12	NTW-24	NTW-06D	NTW-09D	NTW-12D	NTW-24D
Heater power (kw)	6	9	12	24	6*2	9*2	12*2	24*2
Cooling water pressure (kg/cm2)	2.5
Cooling water pipe	PT1/2
Max. working temperature	120℃
Min. working temperature	Normal temperature
Temperature control accuracy	±0.1℃
Cooling capacity (Kcal/h)	5400				10800
Pump power (HP)	0.5	1	1	2	0.5	1	1	2
Pump flow (L/min)	35	45	45	70	35	45	45	70
Pump head (m )	26
Power supply	AC 380V/3P/50HZ
Dimension (cm )	515223.5	625929	677029	677935	515223.5	625929	677029	677935
Weight (kg)	40	50	55	65	40	50	55	65
