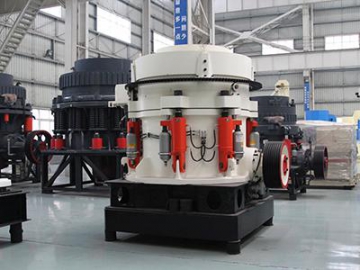

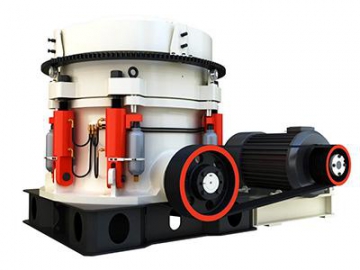

Multi Cylinder Hydraulic Cone Crusher
Request a Quote
Application

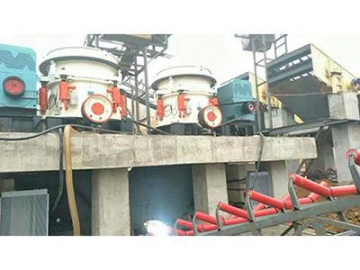

The multi cylinder hydraulic cone crusher is designed for the crushing of high hardness materials, and can satisfy the needs of products with certain shape requirements. Multi cylinder hydraulic cone crushers are the main products in real-time crushing processes, and can be widely used in mining, sand, highway, railway, building materials, traffic, energy, chemical and other applications.
Applicable materials
Quartzite, pebbles, calcite, dolomite, granite, marble, basalt, iron ore, limestone, diabase, bluestone, construction waste, etc.
Model | Cavity type of crusher | Crushing cone diameter (mm) | Inlet width (mm) | Max feeding size (mm) | Adjustment range of outlet (mm) | Handling capacity (t/h) | Power of main motor (kW) | Machine weight (t) | |
HXHP200 | C1 | 900 | 210 | 178 | 22~38 | 160~250 | 4P 160 | 10.1 | |
C2 | 155 | 132 | 18~38 | 145~250 | |||||
C3 | 130 | 110 | 14~38 | 120~250 | |||||
F1 | 118 | 100 | 12~25 | 108~210 | |||||
F2 | 90 | 76 | 10~25 | 81~210 | |||||
F3 | 70 | 60 | 8~25 | 72~210 | |||||
HXHP300 | C1 | 1100 | 235 | 200 | 26~45 | 230~445 | 4P 220 | 17.8 | |
C2 | 211 | 180 | 20~45 | 200~445 | |||||
C3 | 135 | 115 | 16~45 | 180~445 | |||||
F1 | 124 | 105 | 14~25 | 160~220 | |||||
F2 | 96 | 82 | 12~25 | 140~220 | |||||
F3 | 70 | 60 | 8~25 | 120~220 | |||||
HXHP400 | C1 | 1400 | 330 | 280 | 26~51 | 270~630 | 4P 315 | 25 | |
C2 | 200 | 170 | 22~51 | 243~630 | |||||
C3 | 152 | 130 | 16~51 | 210~630 | |||||
F1 | 135 | 115 | 12~25 | 162~370 | |||||
F2 | 106 | 90 | 10~25 | 126~370 | |||||
F3 | 80 | 68 | 8~25 | 104~370 | |||||
HXHP500 | C1 | 1500 | 335 | 285 | 32~51 | 365~790 | 4P 400 | 34.1 | |
C2 | 229 | 190 | 25~51 | 328~790 | |||||
C3 | 180 | 152 | 19~51 | 280~790 | |||||
F1 | 152 | 130 | 13~25 | 202~450 | |||||
F2 | 124 | 105 | 10~25 | 158~450 | |||||
F3 | 88 | 75 | 8~25 | 122~450 | |||||
HXHP800 | C1 | 2000 | 385 | 326 | 32~51 | 616~1100 | 4P 630 | 69.2 | |
C2 | 350 | 298 | 25~51 | 522~1100 | |||||
C3 | 280 | 238 | 16~51 | 380~1100 | |||||
F1 | 160 | 136 | 13~25 | 328~730 | |||||
F2 | 120 | 102 | 10~25 | 270~730 | |||||
F3 | 90 | 77 | 8~25 | 166~730 |
- High crushing ratio, high efficiency and high handling capacity.
- Hydraulic protection and adjustment device, saves labor and time.
- Laminated crushing: products after crushing have a beautiful shape with uniform size.
- New PLC automatic control system: provide reliable security protection.
- Remote touch screen operation interface: display working conditions in real time.
