Stretch Wrapping Machines Manufacturer

Stretch Wrapping Machines

Request a Quote

View All: http://packaging-strapping.com/2-3-3-stretch-wrapping-machines.html

Changcheng’s stretch wrapping machines are designed to prevent products against rain, dust, moisture and dirt during transportation. They are widely used for strapping and packaging in the sections of product export, food & beverage, plastics, glasswork, ceramics and electromechanical components.

Highlights

Stable structure;
Digital control loops;
Slow start and stop of the turntable

Touch screen
Adjustable numbers of films

These highlights make Changcheng’s stretch wrapping machines a type of reliable, stable, operator-friendly wrapping machines that feature long service life, ease of use and reduced failure rate.

Carton Box Stretch Wrapping Machine

Power supply	1P AC220V 50Hz
Air pressure (MPa)	0.4-0.6
Turntable speed (rpm)	0-20
Turntable diameter (mm)	Ø400, Ø600
Air cylinder stroke (mm)	500
Max load weight (kg)	60
Packaging material (mm)	W ≤500, outer dia. ≤Ø280 LLDPE stretch film
Noise	≤75dB (A)
Environment	Humidity ≤90%, temperature -10 - 40℃

Carton Box Stretch Wrapping Machine, MH-FG-810B

Power supply	1P AC220V 50Hz
Air pressure (MPa)	0.4-0.6
Turntable speed (rpm)	0-20
Turntable diameter (mm)	Ø400, Ø600
Air cylinder stroke (mm)	500
Max load weight (kg)	60
Packaging material (mm)	W≤500; outer dia.≤Ø280; LLDPE stretch film
Noise	≤75dB (A)
Environment	Humidity ≤90%, temperature -10 - 40℃

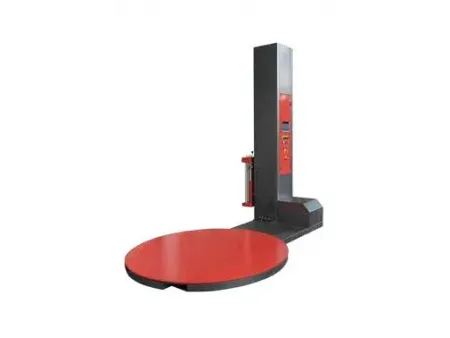

Automatic Pallet Stretch Wrapper, MH-FG-2000A

Power	1P AC 220V/110V 50/60Hz 1.0kW
Turntable speed (rpm)	0-9 (Optional 6/12)
Turntable diameter (mm)	Ø1,500 (Optional Ø1650/1800/2000/2200)
Mast height	2400 (optional Ø2000/2700/3000/3200/3400)
Effective height (mm)	Mast height minus 400
Packaging material (mm)	W≤500, outer dia.≤Ø280, LLDPE stretch film
Machine dimension (mm)	L2650xW1650xH2471

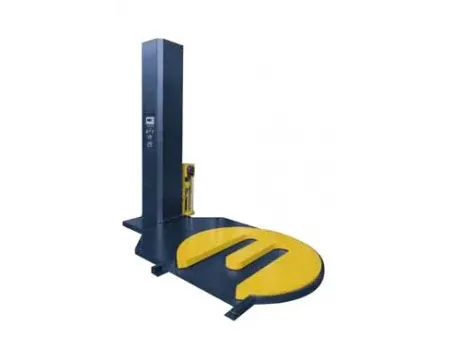

Automatic Pallet Stretch Wrapper with Horseshoe Turntable, MH-FG-2000W

Power supply	1P AC220V 50Hz
Turntable speed (rpm)	0-10
Turntable diameter (mm)	Ø1500 (Optional Ø1650)
Forklift fork width (mm)	≤600
Loading direction	180°
Maximum load weight (kg)	1000
Mast height (mm)	2400 (optional 2000/2700/3000/3200/3400)
Effective height (mm)	Mast height minus 400
Packaging material (mm)	W≤500, outer dia.≤Ø280, LLDPE stretch film
Working height (mm)	500 - mast height minus 400

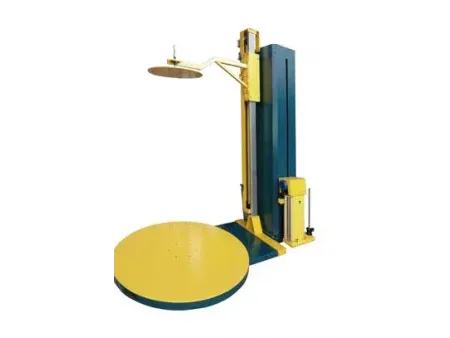

Automatic Top Press Pallet Wrapper, MH-FG-2000C1

Power supply	1P AC220V 50Hz
Turntable speed (rpm)	0-10
Turntable diameter (mm)	Ø1500 (optional Ø1650/1800/2000/2200)
Top press plate dia. (mm)	Ø450 (optional Ø600/800)
Mast height (mm )	2400 (optional 2000/2700/3000/3200/3400)
Maximum Load Weight (kg)	2000
Effective height (mm)	Mast height minus 400
Packaging material (mm)	W≤500, outer dia.≤Ø280 LLDPE stretch film
Working height (mm)	500 - mast height minus 400

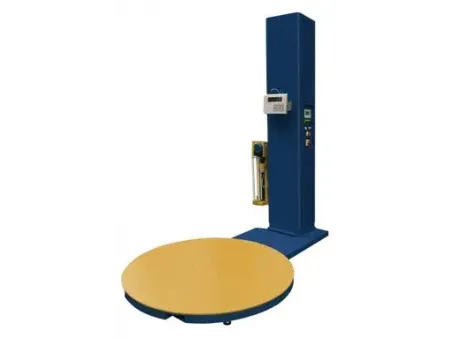

Pallet Stretch Wrapper with Weighing System, MH-FG-2000P

Power supply	1P AC220V 50Hz
Turntable speed (rpm)	0-10
Turntable diameter (mm)	Ø1500 (optional Ø1650/Ø1800)
Mast height (mm)	2400 (optional 2000/2700/3000/3200/3400)
Packaging material (mm)	W≤500; outer dia. ≤Ø280; LLDPE stretch film
Maximum Load Weight (kg)	2000
Effective height (mm)	Mast height minus 400
Scale accuracy (g)	100

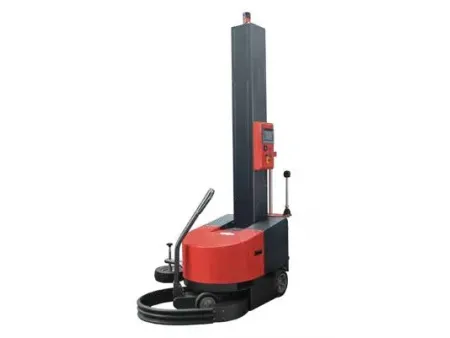

Self-propelled Pallet Wrapping Machine, MH-CTP-600

Power supply	1P AC220V/110V 50/60Hz
Operating power	DC 24V
Battery capacity (Ah)	80
Pallet per battery charge	200 pcs (charge time: 7 hours)
Drive speed (m/min)	90
Pallet size (mm)	600x(600-∞)
Max wrapping height (mm)	2400 (option 2800)
Film material (mm)	LLDPE stretch film, W≤500, out diameter≤250

Speak To Our Specialists

Our team of experienced specialists provides strapping and packaging solutions based on their in-depth knowledge and expertise for your applications.
