Marine Loading Arm (Manual Operation)
Request a Quote
Operating method: manually operated
Supporting structure: independent support, hybrid support, self support, single or double arm
Marine loading arms for manual operations are typically used for transporting fluid between pipelines of inland rivers and small seaports and tankers. During the process of fluid transfer, the design of the loading arm allows it to accommodate the drift and movement of the tanker or ship within its predetermined range without damaging the equipment. In order to prevent drifting past the design range, a range alarm system can be installed to trigger audible and visual warnings to alert operators of excessive drift. Manual arms are lighter, less costly, and require less maintenance than their hydraulic counterparts.

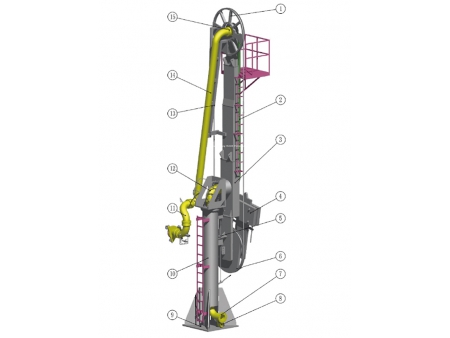

Stucture
- Apex Sheave
- Inboard Arm
- Inboard Arm Support
- Counterweight
- Locking Device
- Cable Sheave
- Connection Flange
- Drain Nozzle
- Base Plate
- Riser
- Triple Swivel Assembly
- Removable Elbow
- Outboard Arm Support
- Outboard Arm
- Apex Swivel Joint
Specification
- Nominal diameter: DN80-DN250 (3”-10”)
- Design pressure: -0.6~10MPa
- Design temperature: -50℃~ 250℃
- Pipeline material: carbon steel/stainless steel/PTFE lined
- low-temperature carbon steel
- Explosion-proof grade: ExdII BT4, Protection grade: IP65
Optional Accessories
- Manual quick connect-disconnect coupler (QCDC)
- Heat tracing and insulation
- Range alarm system
Design Code
- OCIMF: Design and Construction Specification for MLA
