Multi-shape Building Machine
Difference between BOHAI multi-shape arch plate forming machine & UBM (k-span machine, super k-span machine) made by MIC.
1. Appearance

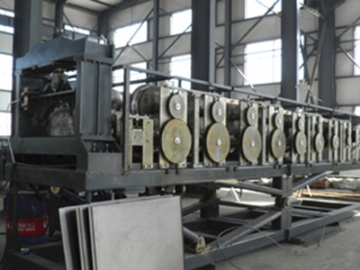

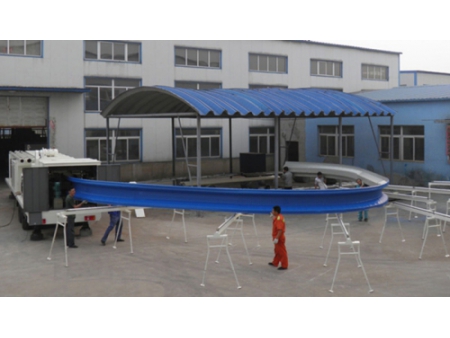

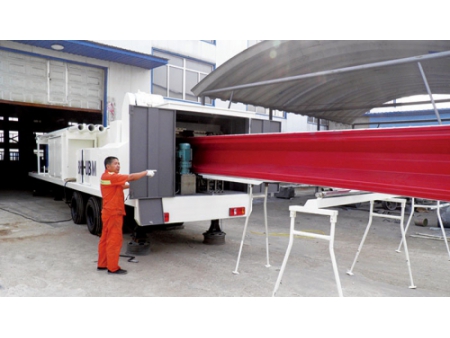

BOHAI multi-shape arch plate forming machine is vertical machine with triple axles. It can lower the cost of project by labour-saving. Mechanical control or hydraulic control is optional. All the ultimate building machine made by MIC have triple axles, length is 10400mm, fully controlled by hydraulic.
2. Structure
Parameter of BOHAI multi-shape arch plate forming machine as follow:
Material of shaft: 45# high-quality steel, galvanized. Material of roller: 45# high-quality steel, quenched, hard chrome plating. Material of cutter: 12CrMoV, heat treatment. Machine adopts automotive rear bridge as the axle, equipped with tires of 900-20 size, can load more and has better impact resistance and damping effect.
K span machine made by MIC has all steel and burnished alumium construction, precision steel forming rollers with hard chrome plating.
3. Software
BOHAI multi-shape arch plate forming machine is equipped with PLC, servo motor, and software which is designed by local engineer.
UBM(k span machine, super k span machine) made by MIC is fully controlled by software loaded on the machine.
4. Operation
BOHAI multi-shape arch plate forming machine has a simple structure, which is easy to operate, and easy for training.
Ultimate building machine made by MIC has a complex structure, the operator has to be trained professionally before operating.
5. Price
Selling price of BOHAI arch plate forming machine is from US$100,000 to US$200,000.
Selling price of Super K span machine made by MIC is much higher than BOHAI arch plate forming machine.
| Main Technical Specifications | |
| Size: 11000mmX2200mmX2100mm (with double axles and 8 tires) | Total Weight: About 10 tons |
| Thickness of Bending Leaf: 10mm | Cutting Material: 12CrMoV, heat treatment |
| Cutting Type: Hydraulic Cutting Device | Forming Type: Roll-formed and length-set cutting |
| Total Motor Power: 22.15KW Main Motor Power: 5.5KW Bending Power: 3.0KW 2.2KW Cutting Power: 3.0KW Hydraulic Station Power: 5.5KW Servo Power: 0.75KW Seaming Power: 1.1KW 1.1KW | |
| Material of Rollers: 45# steel, quenched HRC 55~65, plated with hard chrome. | Material of Shafts: 45# steel, galvanized |
| Bearing: Made in Harbin | Step of Molding: 13 1 |
| Width of Steel Sheet: Feeding width: 600mm Finished width: 305mm Utilization Ratio: 50.8% | |
| Rolling Thickness: 0.6-1.5mm | Applicable Span: 5~20m |
| Working Speed: Straight Sheet: 15m/min Arch Sheet: 13m/min Seaming: 16m/min | |
| Uncoiler: Coil Inner-diameter: 450mm ~ 650mm, Fixed Coil Max. Width: 600~620mm | |
| Load: 10ton | |
