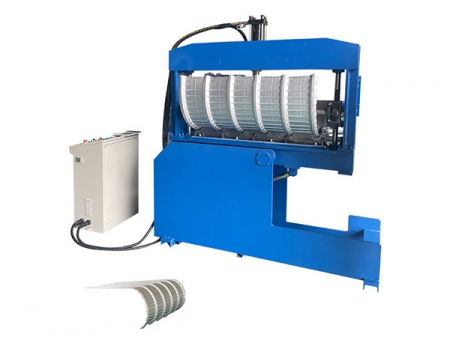

Curving Machine

Curving Machine
Curving Machine
Curving Machine
Request a Quote
Main Technical Parameter
  • Size: 2800mm×1400mm×1800mm
  • Installation type: Vertical type
  • Curving angle: 0-90 degree
  • Working speed: 90 degree/4min (adjustable)
  • Forming rollers step: 5 groups
  • Thickness of material coils: 0.35-0.8mm
  • Reducer motor: WWJK75-25 (1.5kw motor)
  • Min. curving radius: 450mm (semi-circle radius 550mm)
  • Hydraulic station power: 11kw
  • Oil pump model: 63SCY-Y160L-4
  • Material of punch die: 40Cr, surface hardening and nitriding
  • Controlling system: PLC, touch screen.
