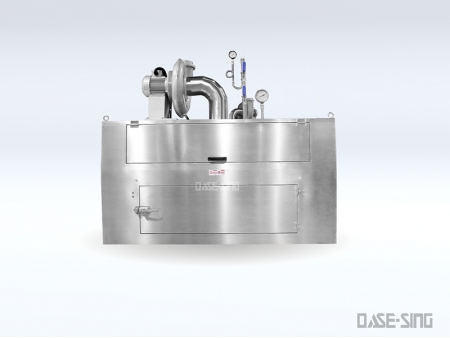

AST-128B Steam Shrink Tunnel
2.8m steam tunnel for shrink sleeve labels
- 2.8m steam shrink tunnel
- Heating method: steam
The steam shrink tunnel is a high-performance heat shrink packaging solution designed for bottled products. With a length of 2.8 meters and a stainless steel frame, it is built to withstand various working environments. The tempered glass window allows operators to easily monitor the shrink process inside the tunnel, ensuring consistent packaging quality.
It features adjustable steam nozzles that can be oriented vertically and horizontally, accommodating a diverse shrink packaging needs. An external valve adjustment system enhances usability, offering greater operational convenience. This steam shrink tunnel provides a maximum steam output of 200kg/h with a pressure range of 0.5–2kg, ensuring efficient and stable steam delivery. Optional international brand valves are available to further enhance the quality and stability of steam production.
- Voltage: 3P/ 220V~440V
- Machine Dimensions (L×W×H): 2800×520×1600mm
- Tunnel Dimensions (L×W×H): 2800×170×420 mm
- Motor Power: 0.75 kW
- Steam Pressure: 0.5 ~ 2 kg.cm2
- Steam Consumption: 100 ~ 200 kg/hr
- Observation Window: Yes
- Our steam shrink tunnel features a robust and durable stainless steel frame, suitable for most working environments.
- Equipped with toughened glass windows for easy viewing of the tunnel interior.
- Adjustable tilt angles, both vertically and horizontally, for steam nozzles to meet all shrinking requirements.
- Valve adjustment device is located on the outside of the machine for easy adjustments.
- Maximum steam capacity: 200 kg/hr
- Steam pressure: 0.5~2 kg
- Optional international brand valves for more stable steam output.
- Neck Tamper Evident Banding Suitable for sealing the neck of various bottles and cans to prevent opening or contamination before sale, preserving product integrity.
- Full Body Over-The-Cap Sleeve Labeling Labels cover the bottle neck, body, and bottom, commonly used for sauces, condiments, and more.
- Full Body Shrink Sleeve Labeling Labels cover from the bottle neck down to the bottom, typically used for juices, coffees, and other products.
- Partial Body Shrink Sleeve Labeling Labels are centered on the bottle body, a common packaging type for various bottled and canned products.
- Full Body & Underlap Sleeve Labeling Designed for packaging needs that require coverage to the product's bottom, showcasing product design aesthetics for a more appealing look.
Our steam shrink tunnel is widely used in the packaging industry for beverages, dairy products, pharmaceuticals, and more. It is suitable for shrink sleeve labeling of various sizes and shapes of bottles or containers, including square, curved, cup-shaped, and unique bottle types.
