Trailer Mounted Diesel Generators Manufacturer

Trailer Mounted Diesel Generators

Request a Quote

View All: http://db-dieselgenerators.com/2-3-trailer-mounted-diesel-generators.html

16kW-600kW Diesel Genset

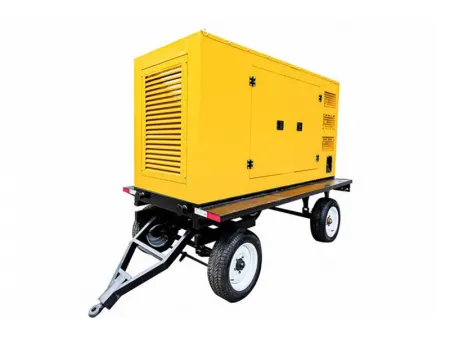

DINGBO Power’s trailer-mounted diesel generators, also known as mobile power stations, are designed for versatility and mobility, suitable for providing emergency power or operational power in remote areas. These units are engineered with a low center of gravity for stability and feature advanced safety measures for highway compliance.

Key Specs

Power Range: 20kVA to 725kVA (16kW to 600kW)

Frequency Options: 50Hz or 60Hz

Voltage Options: 220V to 480V, customizable to meet specific needs

Engine Choices: Includes top brands such as Cummins, Perkins, Volvo, Weichai, Yuchai, SDEC, MTU

Alternator Choices: Stamford, Leroy Somer, Engga, Marathon

Control System: Deep-Sea or SmartGen controllers

Features

Mobility and Flexibility: The trailer features an adjustable bolt-type towing frame and a 360° turntable for flexible steering, accommodating various tractor heights and ensuring high maneuverability.

Safety Features: Equipped with mechanical support devices, mechanical handbrake, and air brakes linked to the trailer, along with a reliable air brake interface and a winch brake system to ensure driving safety.

Operational Efficiency: The set includes a maintenance platform on three sides, easy-access pedals at the tail, and mechanical support for stability, coupled with a silencer box option for reduced noise.

Aesthetics and Customization: The generator’s housing is finished with durable polymer polyurethane paint, available in various colors, and features a uniquely designed lower exhaust to enhance appearance and functionality.

Spacious and Customizable Interior: The trunk is tailored to generator size, providing ample space for operators to move around freely, which simplifies operations and maintenance tasks.

Selection table

Genset Model	Diesel Generator Set				Dimension
	Prime Power		Standby Power		L x W x H (mm)
	kW	kVA	kW	kVA	L x W x H (mm)
DB-16GF	16	20	17	22	2200x1600x2300
DB-20GF	20	25	22	27.5	2200x1600x2300
DB-22GF	22	28	28	35	2200x1600x2300
DB-25GF	25	31	28	35	2200x1600x2300
DB-30GF	30	38	33	41	2200x1600x2300
DB-30GF	30	38	33	41	2200x1600x2300
DB-50GF	50	63	55	69	2400×1600×2400
DB-60GF	60	75	66	83	2400×1600×2400
DB-64GF	64	80	70.4	88	2700×1700×2700
DB-70GF	70	88	77	96	3000×1700×2700
DB-75GF	75	94	82.5	103	3000×1700×2700
DB-75GF	75	94	82.5	103	3000×1700×2700
DB-90GF	80	100	88	110	3000×1700×2700
DB-100GF	100	125	110	138	3000×1700×2700
DB-110GF	110	138	120	150	3000×1700×2700
DB-120GF	120	150	132	165	3000×1700×2700
DB-140GF	140	175	154	193	3000×1700×2700
DB-150GF	150	188	165	206	3300×1700×2850
DB-160GF	160	200	176	220	3300×1700×2850
DB-180GF	180	225	200	250	3300×1700×2850
DB-200GF	200	250	220	275	3700×2100×3100
DB-220GF	220	275	242	303	3700×2100×3100
DB-250GF	250	313	275	344	3700×2100×3100
DB-300GF	300	375	330	413	4000×2100×3100
DB-330GF	330	413	360	450	4000×2100×3100
DB-350GF	350	438	385	481	4300×2200×3300
DB-360GF	360	450	396	495	4300×2200×3300
DB-380GF	380	475	420	525	4300×2200×3300
DB-400GF	400	500	440	550	4700×2200×3400
DB-430GF	430	538	470	588	4700×2200×3400
DB-450GF	450	563	500	625	4700×2200×3400
DB-470GF	470	588	520	650	4700×2200×3400
DB-480GF	480	600	530	663	4700×2200×3400
DB-500GF	500	625	550	688	4700×2200×3400
DB-520GF	520	650	570	713	4700×2200×3400
DB-550GF	550	688	600	750	4700×2200×3400
DB-600GF	600	725	660	825	4900×2400×3600
