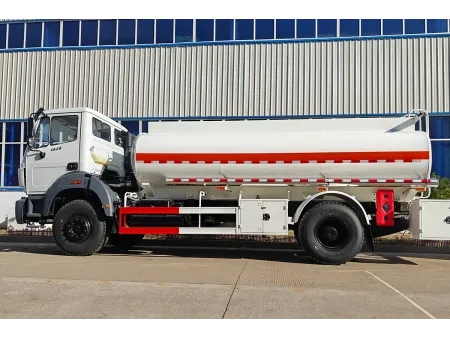

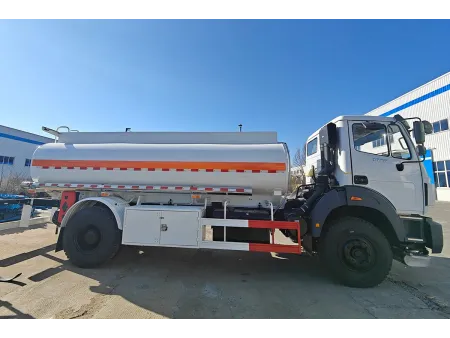

4×2 Fuel Tank Truck

Request a Quote

Website: http://heavytrucks-en.com/2-4-1-4-2-fuel-tank-truck.html

CONSTRUCTION TRUCKS

Equipped with a reliable 290 HP engine, 9-speed manual transmission, and a double-reduction rear axle, the 4×2 fuel tank truck is built for versatility across a range of operating environments. Its 10,000-liter fuel tank provides stable and efficient delivery performance, whether used in mining sites, construction zones, or rural roads. The powertrain ensures strong traction and durability under demanding conditions, making it a practical solution for medium-duty fuel transportation needs.

Engine power 290 HP / 2200 rpm
Tank volume 10 m³
Fuel tank capacity 400 L (steel)
Engine version EURO II

Dimensional Drawing

Specifications

Model	1929 Fuel Tank Truck
Driving Type	4×2
Cab	Cab ExteriorMetal bumper Three-step ladder Exterior sun visor Sun roof (manual) Rear view mirror (manual adjustment) Cab InteriorAir-sprung suspension driver's seat Cooling and heating air conditioner Steering wheel (with adjustable height and angle) Door lock (manual) Radio (with MP3 player) Digital instruments
Engine	Type: WP10.290E32 Version: EURO II Displacement (I): 9,726 Max. Power (HP/rpm): 290/2200 Max. Torque (N.m/rpm): 1160/1200~1600 Cylinder: 6 in-line
Transmission	9JS150A / 15.53-1 Gears: 9 speed forward Synchromesh or Constant Mesh: Constant Mesh Transfer Box: not available Power Take-Off (P.T.O.): yes
Steering System	8098 Recirculating ball steering gear, hydraulic booster
Clutch	Ø430mm single dry friction disc, diaphragm spring, pushing type
Fuel Tank	400L (iron)
Front Axle	7500kg, non-drive steering
Rear Axle	13000kg, double reduction driving axle, hydraulic shock absorber, differential lock
Suspension	Front 13pcs / Rear 9 8pcs hard parabolic spring
Brakes	Service: dual circuit air brakes Emergency/Parking: spring potential brake Auxiliary: EVB (optional ABS)
Electrical Equipment	Alternator: 70Amp Starter Motor: 5.5kW Batteries: 2×12V – 135AH
Performance Data	Gradeability@GVM: 30% Max. Geared Road Speed: 80km/h Final Drive Ratio: 5.263 (optional 4.769, 5.921)
Tyre	Size and Ply Rating: 12.00R20-18PR Steel Rim
Upper Body	8-10m³
Dimensions	Wheel Base (WB): 4500mm Overall Length (OL): 7100mm Overall Width (OW): 2550mm Overall Height (OH): 3670mm Front Overhang (FOH): 1515mm Rear Overhang (ROH): 1085mm
Total Vehicle Weight	10000kg

*The above data is subject to the actual product.

Applications

Mining operations: Equipped with a 10 m³ fuel tank and 290 HP engine, this fuel browse truck can be configured with an all-wheel drive system to handle steep inclines and gravel roads commonly found in mining areas. Its short wheelbase ensures agility for on-site fuel delivery.
Construction projects: Ideal for transporting fuel across construction sites, the oil tanker truck features reinforced suspension to handle uneven, unpaved roads and ensure stable operation in all weather conditions, supporting uninterrupted site activity.
Agricultural use: Well-suited for navigating rural dirt roads, the large-capacity tank enables efficient diesel delivery to farms and agricultural equipment in remote locations.
