8×4 Fuel Tank Truck

Request a Quote

Website: http://heavytrucks-en.com/2-4-3-8-4-fuel-tank-truck.html

CONSTRUCTION TRUCKS

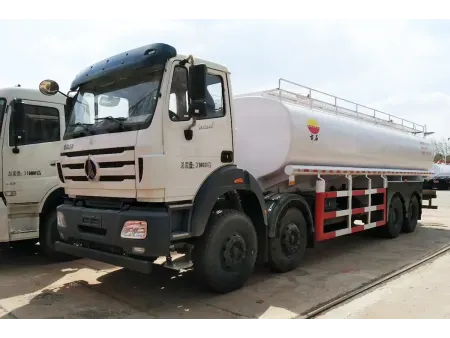

The 8×4 fuel tank truck features a powerful configuration comprising a 380 HP engine, 12-speed transmission, and dual-stage reduction rear axles. Equipped with a 30 m³ tank body, this oil tanker truck is engineered to meet the fuel transportation demands of oilfields, mining operations, and construction projects under heavy-duty and complex conditions. The 8×4 drivetrain increases both load capacity and stability, allowing the truck to perform efficiently across desert tracks, steep inclines, and muddy roads.

Engine power 380 HP / 2200 rpm
Tank capacity 20–30 m³
Fuel tank capacity 400 L (steel)
Engine version EURO II

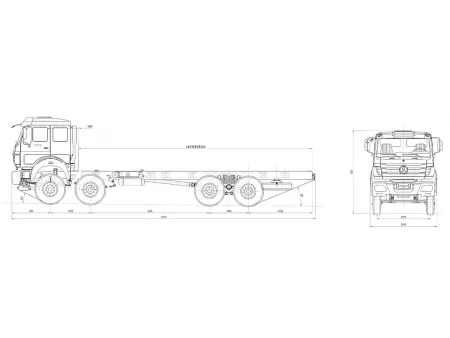

Dimensional Drawing

Specifications

Model	3138 Fuel Tank Truck
Driving Type	8×4
Engine	Type: WP10.380E32 Version: EURO II Displacement (I): 9,726 Max. Power (HP/rpm): 380/2200 Max. Torque (N.m/rpm): 1460/1400~1600 Cylinder: 6 in-line
Transmission	12JS200T / 15.53-1 Gears: 9 speed forward Synchromesh or Constant Mesh: Synchromesh Transfer Box: not available Power Take-Off (P.T.O.): yes
Steering System	8098 Recirculating ball steering gear, hydraulic booster
Clutch	Ø430mm single dry friction disc, diaphragm spring, pushing type
Fuel Tank	400L (iron)
Front Axle	7500kg 7500kg, non-drive steering
Middle & Rear Axle	13000kg 13000kg, double reduction driving axle, differential lock
Suspension	Front 12pcs×2 / Rear 13pcs hard parabolic spring
Brakes	Service: dual circuit air brakes Emergency/Parking: spring potential brake Auxiliary: EVB (optional ABS)
Electrical Equipment	Alternator: 70Amp Starter Motor: 5.5kW Batteries: 2×12V – 135AH
Performance Data	Gradeability@GVM: 30% Max. Geared Road Speed: 80km/h Final Drive Ratio: 5.263 (optional 4.769, 5.921)
Tyre	Size and Ply Rating: 12.00R20-18PR Steel Rim
Upper Body	20-30m³
Dimensions	Wheel Base (WB): 1500 4450 1450mm Overall Length (OL): 11500mm Overall Width (OW): 2500mm Overall Height (OH): 3670mm Front Overhang (FOH): 1435mm Rear Overhang (ROH): 2300mm
Total Vehicle Weight	15500kg

*The above data is subject to the actual product.

Applications

Oilfield operations: Capable of carrying up to 30 m³ of fuel, this fuel truck can be equipped with a full-time drive system for enhanced mobility on soft desert terrain. It efficiently supports drilling operations by enabling reliable fuel delivery and waste oil collection.
Mining transport: The reinforced chassis is designed to withstand steep inclines and rough, rocky roads typical of mining sites. It ensures stable delivery of diesel and lubricants to deep-pit operations.
Construction projects: Outfitted with all-terrain tires, the fuel tank truck navigates muddy and uneven surfaces commonly found on construction sites. It provides long-distance transport of asphalt and industrial fuel, supporting remote infrastructure development projects.
