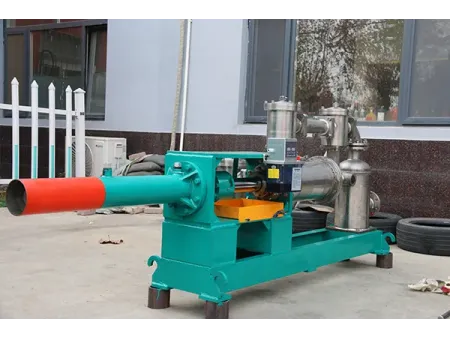

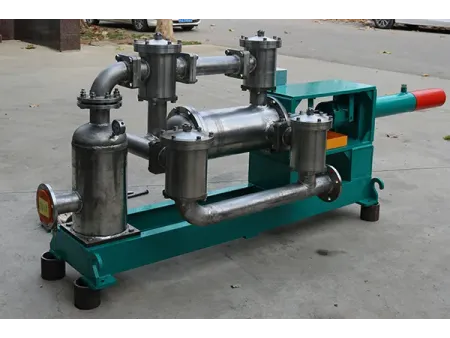

Horizontal Plunger Pump for Screw Pump Replacement
Request a Quote
Energy-saving filter press feed pump for replacing screw pump in slurry handling applications
To meet customer needs for replacing screw pumps in filter press systems, we developed a custom horizontal plunger pump specifically designed for the narrow and elongated installation spaces typical of screw pump layouts. Based on on-site operational feedback, the redesigned horizontal plunger pump ensures adequate maintenance clearance, stable operation, low noise, and zero vibration, earning consistent positive feedback from clients.
Technical Parameters
| Model | Rated Flow (m³/h) | Feed Pressure (MPa) | Head (m) | Motor (kW) | Cooling Method | Inlet/Outlet Flange | Cylinder Material |
| | 3 | 1.5 | 150 | 3 | Air cooling | DN50 | 45#/304/316L/2205 (Available options) |
| | 10 | 1.5 | 150 | 3 | Air cooling | DN80 | |
| | 15 | 1.5 | 150 | 4 | Air cooling | DN80 | |
| | 20 | 1.5 | 150 | 5.5 | Air cooling | DN80 | |
| | 35 | 1.5 | 150 | 5.5 | Air cooling | DN80 | |
| | 48 | 1.5 | 150 | 7.5 | Air cooling | DN100 | |
| | 60 | 1.5 | 150 | 9 | Air cooling | DN100 | |
| | 80 | 1.5 | 150 | 11 | Air cooling | DN100 | |
| | 100 | 1.5 | 150 | 15 | Air cooling | DN100 | |
| | 120 | 1.5 | 150 | 18.5 | Air cooling | DN100 | |
| | 140 | 1.5 | 150 | 18.5 | Air cooling | DN125 | |
| | 160 | 1.5 | 150 | 22 | Air cooling | DN125 | |
| | 200 | 1.5 | 150 | 37 | Air cooling | DN125 | |
| | 250 | 1.5 | 150 | 45 | Air cooling | DN150 | |
| | 300 | 1.5 | 150 | 55 | Air cooling | DN150 |
Features
- Energy saving: Compared with traditional slurry and screw pumps, the horizontal plunger pump reduces motor power consumption by 50%–80%, significantly lowering operational costs.
- Higher pressure and efficiency: The pump delivers output pressure up to 2 MPa, greatly improving filtration efficiency, increasing filter cake thickness, and reducing moisture content.
- Upgraded sealing and guiding structure: A universal joint absorbs misalignment between the hydraulic cylinder, coupling, material cylinder, and mounting frame, effectively reducing seal-ring wear.
- Custom sealing materials: Built with specialized sealing materials and structures to greatly extend seal life.
- Smart lubrication system: Timed and metered lubrication is applied between guide seals through a closed-loop lubrication system, preventing oil waste and environmental contamination. Controlled lubrication also avoids accelerated seal wear caused by human error.
- Longer service life: Low-speed reciprocating (back-and-forth) motion extends the lifespan of core components compared with high-speed reciprocating pumps.
- LED status indicators: Visual LED lighting indicators allow operators to quickly identify pump status by color. Commands are issued, processed, and monitored through the integrated PLC system.
- Optimized for narrow installation spaces: The pump is specially customized for elongated and tight spaces typical of screw pump applications while ensuring sufficient maintenance access, stable operation, low noise, and vibration-free performance.
On-Site Application

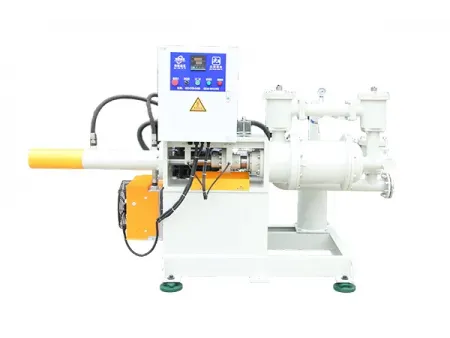

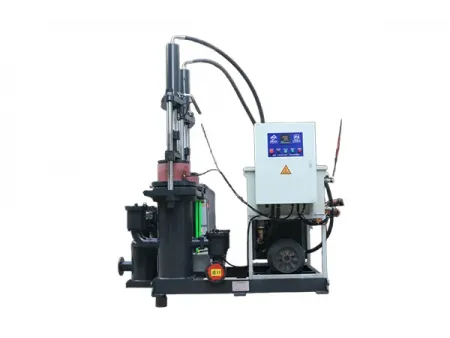

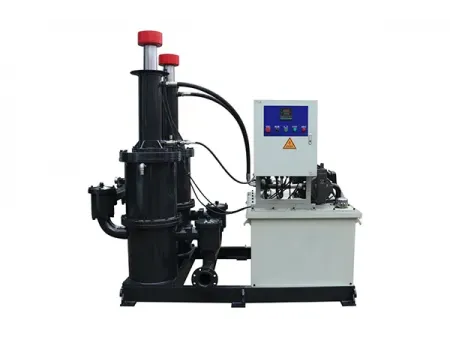

Related Special Plunger Pumps
