Semi-Auto Tube Filling and Sealing Machine
Request a Quote
LQ-TFS
Tube filler sealer machine for filling semi-viscous and viscous products into metal, plastic and laminate tubes
Perfect for packaging semi-viscous and viscous products, our semi-automatic tube filling and sealing machine works with metal, plastic, and laminate tubes. It handles tube alignment, filling, sealing, trimming, and automatically ejects finished products. With high stability and precision, it’s ideal for cosmetics, pharmaceuticals, and food products.

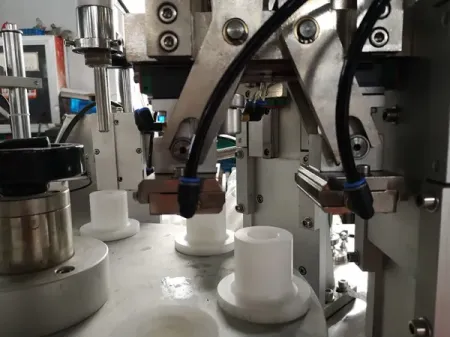

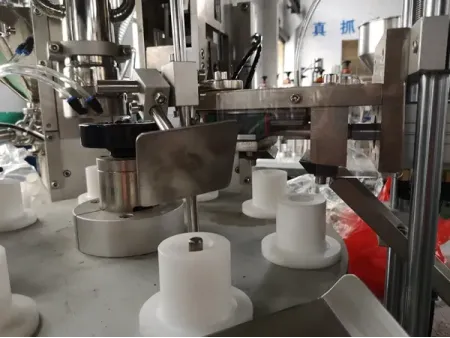

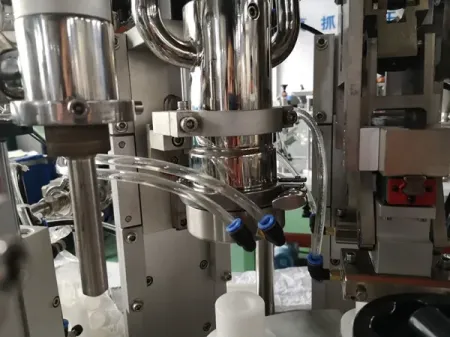

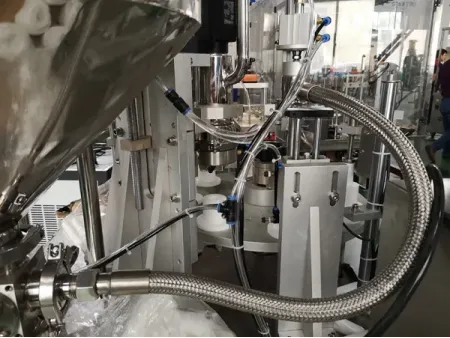

Main Components
Specifications
| Model | ||
| Tube Material | Plastic Tube, Laminate Tube | Metal Tube, ALU Tube |
| Diameter of Tube | 19-50mm | 15-50mm |
| Filling Volume | 2.5-250ml (customizable) | 5-100ml (customizable) |
| Filling Accuracy | ±1% | ±1% |
| Capacity | 1500-1800pcs/h | 1800-3600 pcs/h |
| Air Consumption | 0.3m³/min | 0.2m³/min |
| Power | 0.75kW | 1.5kW |
| Voltage | 220V | 220V |
| Overall Dimensions (L×W×H) | 1100mm×800mm×1600mm | 1000mm×600mm×1700mm |
| Weight | 250kg | 400kg |

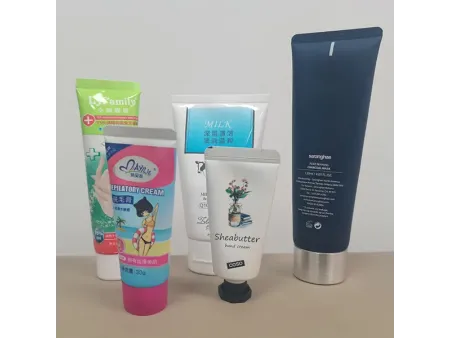

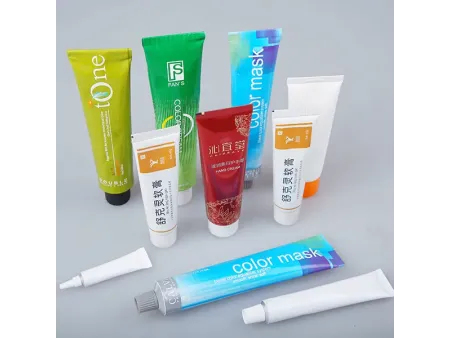

Applications
This semi-auto tube filling and sealing machine is suitable for various types of plastic and aluminum-plastic composite tubes. It automatically aligns color marks, fills, seals, prints, and trims, making it widely used in the cosmetics, pharmaceutical, and food industries.
Features
- The tube filling and sealing machine uses a touch screen and PLC control system, providing automatic positioning and a high-efficiency heating system formed by imported rapid heaters and high-stability flow meters
- The peed control is adjustable, allowing for flexible operation to suit different production needs
- Equipped with interchangeable filling heads of various specifications to meet different viscosity filling requirements
- Features a no-tube, no-fill function controlled by a precise photoelectric system, ensuring filling occurs only when a tube is present
- Includes an automatic tube ejection system, making it easy to connect with other equipment like cartoning machines
- High-precision piston filling system ensures accurate dosing, and the filling structure can be quickly disassembled for thorough cleaning
- Simple and convenient mold changeover process allows for quick adjustments when switching between different tube diameters
