Semi-Auto Granule Filling Machine Manufacturer

Semi-Auto Granule Filling Machine

Request a Quote

View All: http://upg-printpacking.com/2-1-1-semi-auto-granule-filling-machine.html

LQ-BKL

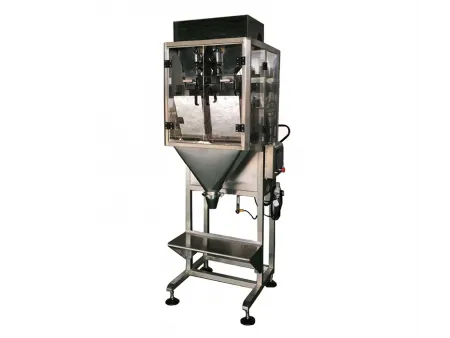

Linear weigher with stand for packing solid and granular products

Designed for the efficient handling of granular materials, this semi-auto granule filling machine is a suitable solution for precise and reliable packaging. Tailored to adhere strictly to GMP standards, this granule packing equipment automates the weighing and filling processes, ensuring consistent quality across batches. Whether it's for packaging granular foods like sugar, salt, and spices, or non-food items such as washing powder, this packaging machine adjusts easily to meet a variety of production needs.

Specifications

Model	LQ-BKL-102	LQ-BKL-103	LQ-BKL-104	LQ-BKL-202	LQ-BKL-203	LQ-BKL-204
Weighing Type	Linear weigher
Weighing Range	10-2800g, optimal range (100-1800g)
Display Degree	0.1
Accuracy	/-0.1%
Speed	35bags/min	45bags/min	60bags/min	40 bags/min	40 bags/min	40 bags/min
Power Supply	220V/50-60HZ/1 Phase
Bucket Volume	120L	40L	65L	40L	40L	40L
Power	0.3kW	0.4kW	0.5kW	0.5kW	0.5kW	0.5kW
Overall Dimensions	520×630×1750mm	700×700×1950mm	820×750×2150mm	700×700×1950mm	1300×700×1950mm
Net Weight	100kg	200kg	160kg	160kg	200kg
Model Denomination: for example, LQ-BKL-102 is assembled with single vibrating source and double buckets. ("1" stands for the number of vibrating source and "2" stands for the number of buckets)

Features

Made entirely from SUS304 stainless steel with mirror-finished contact parts, this filler prioritizes hygiene and meets the highest quality standards. Its modular design with an IP55 protection rating facilitates easy disassembly, cleaning, and maintenance, ensuring a sanitary filling environment
This solution is ideal for filling various granular products, including white sugar, salt, seeds, rice, MSG, milk powder, coffee, sesame seeds, and washing powder. Its adaptable design allows for precise dosing and filling of different granule sizes and densities
The weighing bucket's gate is driven by a stepper motor, enabling accurate pause and adjustment at any speed or angle. This ensures precise filling and eliminates the risk of gas or oil contamination, making it suitable for even the most sensitive products
The intuitive human-machine interface and one-button operation system streamline the filling process. All working parameters are automatically tracked and adjusted, and the system can store up to 99 formulas for quick and easy product changeovers
This advanced filling solution offers remote control support and networking capabilities. Data statistics, such as single package weight, cumulative quantity, product pass rate, and weight deviation, can be easily accessed and uploaded. The MODBUS communication protocol ensures seamless integration with your existing DCS system
The filling machine can be directly installed on vertical or horizontal packaging machines for automated operation or paired with a base for semi-automatic use, offering flexibility to meet your specific production needs.
