3MF | 22-89ml/r
Hydraulic Gear Motor
Within the diverse range of hydraulic gear motors manufactured by GRH, our 3MF series stands out, encompassing five series of gear motors with displacement options ranging from 1.1 to 115 ml/r. These gear motors are especially valued for their robust resistance to contamination, simplicity in design, and high reliability. An outstanding feature of our 3MF series is the automatic axial clearance compensation, which, along with the wear-resistant shaft sleeves, significantly extends the lifespan of the motors, making them a durable choice in various applications.
Features
- Available in displacements ranging from 22 to 89 ml/r
- Higher load capacity and extended service life
- Equipped with automatic axial clearance compensation for consistent performance

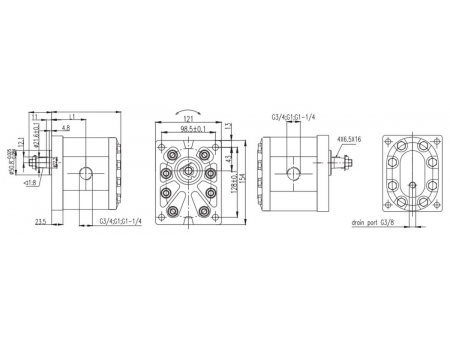

| Displacement (ml/r) | 1.1 | 1.6 | 2.1 | 2.7 | 3.2 | 3.7 | 4.2 | 4.8 | 5.8 | 6.5 | 8 |
| L1(mm) | 33 | 35 | 36 | 37 | 38 | 39 | 40 | 41 | 43 | 44 | 47 |
| L(mm) | 75 | 78 | 79 | 81 | 83 | 85 | 87 | 89 | 93 | 95 | 101 |
The 3MF series gear motors excel in cooling systems and small cement mixers, providing essential functionality for equipment like road rollers, excavators, and bulldozers. Their efficiency in cooling and mixing applications underscores the series' versatility and reliability in construction machinery.
