GS | 80.5-564.9ml/r

GS | 80.5-564.9ml/r
GS | 80.5-564.9ml/r
GS | 80.5-564.9ml/r
GS | 80.5-564.9ml/r
Request a Quote

Orbital Motor

Orbital Motor

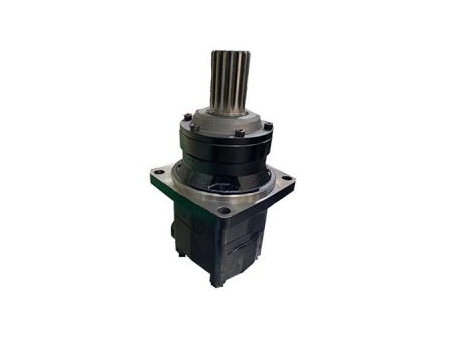

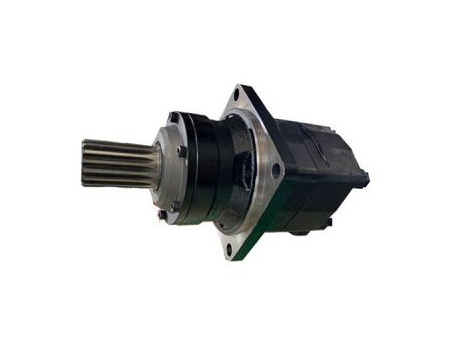

The GS series orbit motor feature a roll-gerotor with disc valve. The distribution valve is independent from the output shaft and drives to the versatile shaft. A balance plate is equipped to balance the hydraulic pressure in the distribution valve. This orbit motor maintains a high efficiency and outstanding starting performance, even under high pressure conditions.

Optional functions

  • Disc valve, roll-gerotor
  • Flange and wheel mount
  • Short motor
  • Motor with rear drum brake
  • Tacho connection
  • Speed sensing
  • Side and rear port
  • Shaft extension: straight, spline, tapered
  • Metric and BSPP port
Applications
  • Conveyors
  • Paving machines
  • Metal working machines
  • Specialized vehicles, etc.
  • Agricultural machinery
  • Food Industry
  • Mining Machinery
Specifications
Max Displacement cm3/rev 564.9
Max Speed RPM 1000
Max Torque Nm Cont: 850 int: 990
Max output Kw 23
Max Pressure Drop MPa Cont: 21 int:27.5
Max Flow Ipm 90
Min Speed RPM 5
Permissible Shaft Loads N 500
Pressure Fluid   DIN 51524 or ISO 6743/4
Fluid Temperature Range -40~140
Viscosity Range mm2/s 20~75
Filtration   ISO code 20/16

RH orbit motor converts hydraulic energy to mechanical energy, applicable to many industrials like agricultural harvesters, seeder, aerial work platform, garbage truck, excavator, forklift, cleaning equipment, etc.
