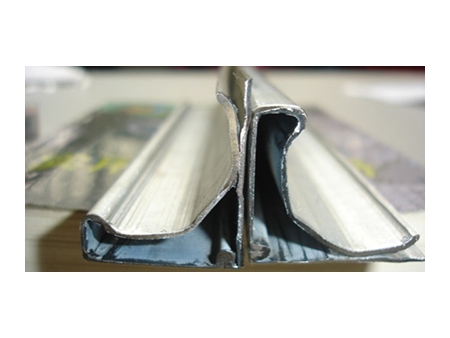

Lockformer Transverse Duct Connector

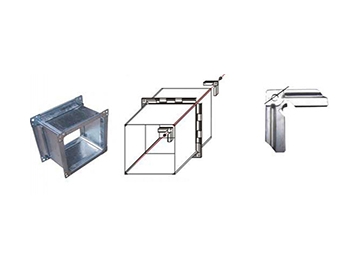

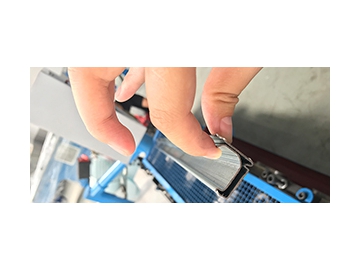

The transverse duct connector flange forming machine is used to make transverse duct connections. It consists of a material feeding station, TDC clip roll, and cutting compartment. The cutting section is fully automated, thus achieving automated production, the production speed is 3-5m/min. These are suitable for making ventilation duct with larger cross section area. If you have certain sealing requirement for your duct, we can add sealant into the manufacturing process.

Parameter:
Type Shape of TDC Srip Width Thickness Motor Weight Dimension
SBTDC-20A 89mm 0.8mm 3Kw 2000kg 2800×600×1150mm
SBTDC-25A 99mm 0.8mm 3Kw 2000 kg 2800×600×1150mm
SBTDC-30A 121mm 1.0mm 3 Kw 2200 kg 3800×600×1150mm
SBTDC-35A 131mm 1.0mm 3 Kw 3000 kg 3800×600×1200mm
SBTDC-40A 146mm 1.2mm 4 Kw 3000 kg 3800×600×1200mm
SBTDC-20B 86mm 0.8mm 3 Kw 2000 kg 3200×600×1150mm
SBTDC-25B 96mm 0.8mm 3 Kw 2000 kg 3200×600×1150mm
SBTDC-30B 118mm 1.0mm 3 Kw 2200 kg 4500×840×1450mm
SBTDC-35B 128mm 1.0mm 4 Kw 3000 kg 4500×840×1450mm

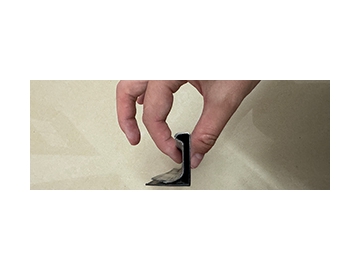

We can make corner bracket and hook bracket for flanges

Parameter:
type Name strip Width Thickness Size Shape of corner bracket
and hook bracket
T-20DC Corner bracket 140mm 2.5mm a=95mm
T-300C Corner bracket 150mm 3mm a=105mm
T-40DC Corner bracket 180mm 3.5mm a=123mm
T-25DC Corner bracket 110mm 3mm a=105mm
T-35DC Corner bracket 150mm 3mm a=106mm
DC-10 hook bracket 35mm 5mm
