A1000 Dental Chair Unit (integrated dental chair, handpiece, LED light)

A1000 Dental Chair Unit  (integrated dental chair, handpiece, LED light)
A1000 Dental Chair Unit  (integrated dental chair, handpiece, LED light)
A1000 Dental Chair Unit  (integrated dental chair, handpiece, LED light)
A1000 Dental Chair Unit  (integrated dental chair, handpiece, LED light)
A1000 Dental Chair Unit  (integrated dental chair, handpiece, LED light)
A1000 Dental Chair Unit  (integrated dental chair, handpiece, LED light)
A1000 Dental Chair Unit  (integrated dental chair, handpiece, LED light)
Request a Quote
Technical parameters
  • Power supply: AC220V/110VC 50/60HZ
  • Input power: 1200W
  • Fuse specification: RFl-20, Specification: Ф5×20, Rated current: 6.0A
  • Dental operatory light (cold light): AC12--24V/6W--10W
  • X-ray film viewer: AC24V/4W
  • Water supply thermostat: AC24V/80W temperature: 40℃±5℃
  • DC motor: DC24V/L3.8A
  • Dental operatory light color temperature: ≤4500K
  • Dental operatory light intensity: 7000lux--42000lux
  • Minimum height of the chair: ≦50cm
  • Maximum height of the chair: ≧75cm
  • Load of chair: ≤250kg
  • Chair cushion: < 1.9m
  • Load of dental instrument tray: 1.5KG
  • Size of dental chair unit: 155*105*125 cm
  • Packed weight: 250KG
Features
The A1000 dental chair unit uses an easy to clean ceramic spittoon, as well as a large instrument tray to adequately fit all necessary equipment.
  • Patients and dentists alike can directly view their oral condition using the dental x-ray film viewer.
  • Because the instrument tray is top mounted, it is easy for dentists to select their various instruments. The operation light can also be switched on/off, as well as adjust the light intensity via manual or induction mode.
  • For after-sales repair, the components of the dental chair can be directly removed, making the repair process easier.
Component introduction
    Electric patient chair
  • The chair cushion is made of a soft vacuum memory cotton PU material that is ergonomic, ensuring patients are comfortable during treatment.
  • The chair height is controlled using a low voltage DC24V motor with a gas spring to assist, which ensures lifting is stable and fast.

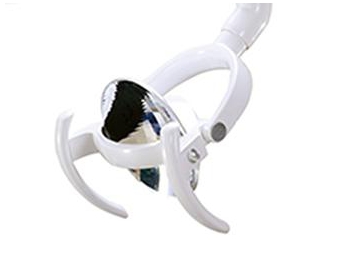

    Dental operatory light
  • Bright spotlight and uniform distribution of the light spot provides plenty of lighting for the dentist.
  • Users can switch the light on/off in a manual or induction mode.

    Instrument tray
  • A no-screw design for the shell brings makes after sales service and maintenance easy.
  • The instrument tray has an X-ray film viewer, making it easy for dentists to communicate needs to their patients.
  • Four-hole handpiece tubing uses advanced PU material that is corrosion resistant, high-pressure resistant and aging-resistant.

    Multifunctional foot control
  • Dentists can adjust the height of chair and back by using a foot pedal.
  • Dentists can also control the spittoon water supply for the mouth rinse cup by using the foot pedal. It can also provide cleaning water.
  • A multifunctional foot pedal controls water and air supply for the dental handpiece.
  • A multifunctional foot pedal controls the dental handpiece's water/air separation performance.
Standard configurations
  • Electric patient chair 1set
  • Water supply and conversion system for dental unit 1set
  • Mouth wash supply thermostat 1set
  • Dentist's module with pneumatic lock 1set
  • Touchpad instrument table 1set
  • LED dental operatory light 1set
  • Four-hole handpiece tubing 3set
  • Three-way syringe 2set
  • Strong/weak saliva suction system 1set
  • Multifunctional foot control 1set
  • Dentist chair 1set
Optional configurations
  • Dental scaler
  • Curing light
  • Dental handpiece with high/low speed
  • Medical air compressor
  • Intraoral camera (+display)
  • Other corollary equipment
Installation
