A3000 Dental Chair Unit (dental chair, handpiece, patient monitor, LED light)

A3000 Dental Chair Unit  (dental chair, handpiece, patient monitor, LED light)
A3000 Dental Chair Unit  (dental chair, handpiece, patient monitor, LED light)
A3000 Dental Chair Unit  (dental chair, handpiece, patient monitor, LED light)
A3000 Dental Chair Unit  (dental chair, handpiece, patient monitor, LED light)
A3000 Dental Chair Unit  (dental chair, handpiece, patient monitor, LED light)
A3000 Dental Chair Unit  (dental chair, handpiece, patient monitor, LED light)
A3000 Dental Chair Unit  (dental chair, handpiece, patient monitor, LED light)
A3000 Dental Chair Unit  (dental chair, handpiece, patient monitor, LED light)
A3000 Dental Chair Unit  (dental chair, handpiece, patient monitor, LED light)
A3000 Dental Chair Unit  (dental chair, handpiece, patient monitor, LED light)
Request a Quote
Technical parameters
  • Power supply: AC220V/110VC 50/60HZ
  • Input power: 1200W
  • Fuse specification: RFl-20, Specification: Ф5×20, Rated current: 6.0A
  • Dental operatory light (cold light) : AC12--24V/6W--10W
  • X-ray film viewer: AC24V/4W
  • Water supply thermostat: AC24V/80W temperature: 40℃±5℃
  • DC motor: DC24V/L3.8A
  • Oral operatory light color temperature: ≤4500K
  • Dental operatory light intensity: 7000lux--42000lux
  • Minimum height of the chair: ≦50cm
  • Maximum height of the chair: ≧75cm
  • Load of chair: ≤250kg
  • Chair cushion: < 1.9m
  • Load of dental instrument tray: 1.5KG
  • Size of dental chair unit: 155*105*125 cm
  • Packed weight: 250KG
Features
  • The chair cushion is made of a soft vacuum memory cotton PU material that is ergonomic, ensuring patients are comfortable during treatment.
  • An all direction, automatic control program offers single button operation. The side box can also turn 90 degrees, and provides a larger work space for the assistant.
  • After sales maintenance is easy, as the dental chair uses a no-screw fixation method. This facilitates quick maintenance, saving users time, money and effort.
Component introduction
    Electric patient chair
  • The chair uses electric control for the height.
  • The chair cushion is made of a soft vacuum memory cotton PU material that is ergonomic, ensuring patients are comfortable during treatment.
  • The chair height is controlled using a low voltage DC24V motor with a gas spring to assist, which ensures lifting is stable and fast.

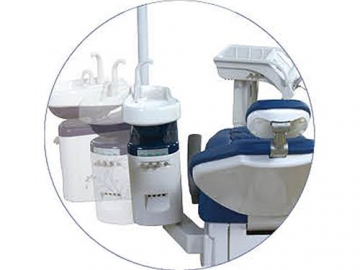

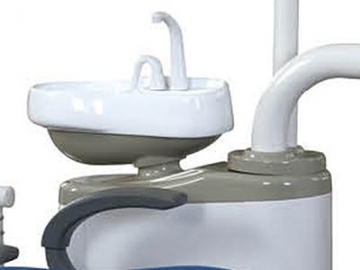

    Spittoon
  • The spittoon can be turned 90 degrees, which makes spitting easier.
  • The side box can be turned 90 degrees, which offers more space for the dentist.
  • The water nozzle can be removed, making the disinfection process easier.

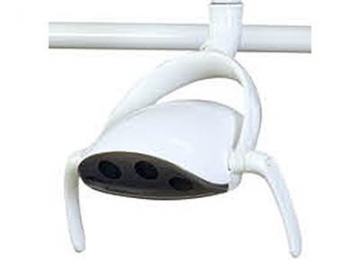

    Dental operatory light
  • Bright spotlight and uniform distribution of the light spot provides plenty of lighting for the dentist.
  • Users can switch the light on/off in a manual or induction mode, as well as adjust the intensity in a manual or induction mode.

    Monitor system
  • The pulse oximeter monitor directly reflects patient conditions.
  • Intraoral camera helps the dentist check the oral condition of the patient and promotes the communication between dentist and patient.

    Instrument tray
  • The instrument tray has an inductive operatory control system that features 3 memory keys for adjusting the chair's height.
  • The dental x-ray film viewer facilitates easy viewing for treatment discussions.
  • The instrument tray has right and left hidden air-lock balance on-off switches, allowing the instrument to be used in a wider space range.
  • The instrument tray has 6 hangers.
  • Four-hole handpiece tubing uses advanced PU material that is corrosion resistant, high-pressure resistant and aging-resistant.

    Multifunctional foot control
    The foot control's functions are as follows:
  • Adjusting the height of chair and back
  • Controlling water supply of spittoon for mouth rinse cup and providing cleaning water.
  • Controlling water and air supply of the dental handpiece.
  • Controlling the dental handpiece's air/water separation functions.
Standard configurations
  • Electric patient chair 1set
  • Rotatable side box and spittoon 1set
  • Water supply and conversion system for dental unit 1set
  • Mouth wash supply thermostat 1set
  • Dentist's module with pneumatic lock 1set
  • Inductive touchpad instrument table 1set
  • Dental operatory light 1set
  • Four-hole handpiece tubing 3set
  • Three-way syringe 2set
  • Strong/weak saliva suction system 1set
  • Multifunctional foot control 1set
  • Dentist chair 1set
  • Nurse chair 1set
Optional configurations
  • Dental scaler
  • Curing light
  • Dental handpiece with high/low speed
  • Medical air compressor
  • Medical saliva suction negative-pressure machine
  • Intraoral camera (+display)
  • Other corollary equipment
