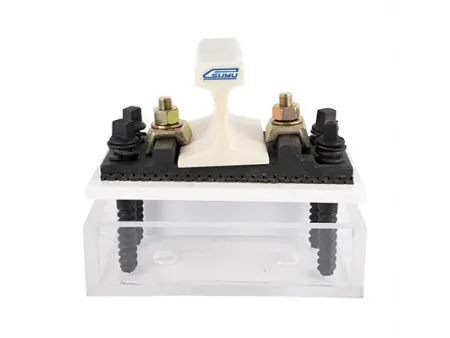

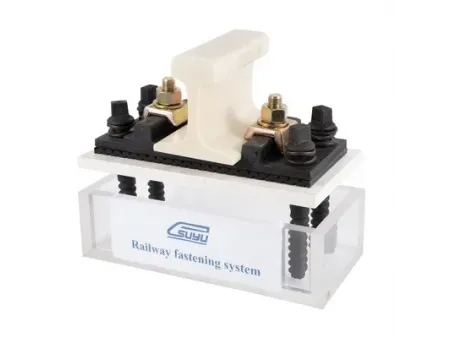

The KPO clamp rail fastening system is a commonly used solution for securing railway tracks. It consists of KPO clamps, iron pads, and bolts that connect the rails to the sleepers. The KPO system employs a rigid connection ensuring that the rails remain firmly fixed in place and preventing track loosening or movement. Its effectiveness in supporting heavy loads and its durability under harsh conditions make it a preferred choice for heavy railways, port transportation, and mining tracks.

Railway Fastening Components

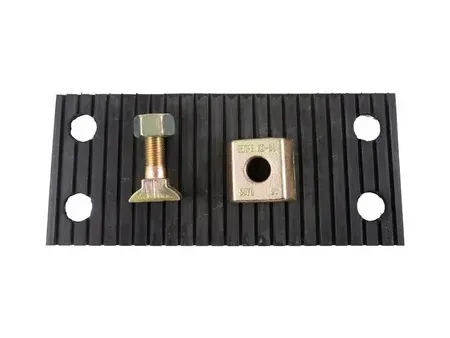

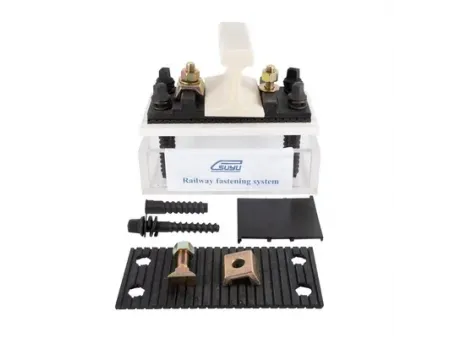

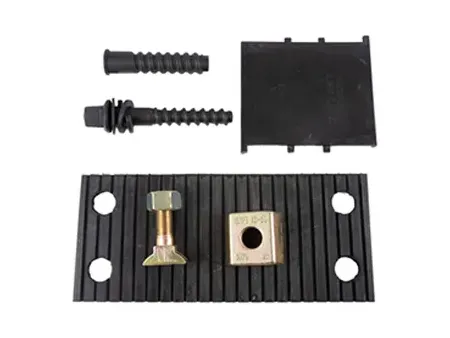

The complete KPO fastening system for each sleeper consists of the following components

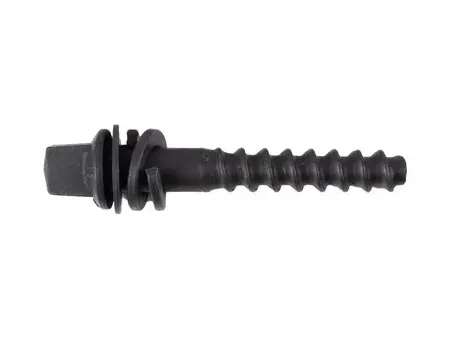

  • 4 pcs Screw spike
  • 4 pcs Spring washer

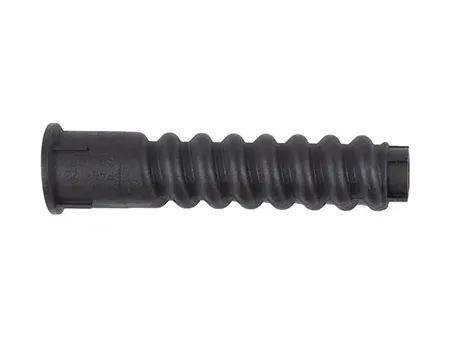

  • 4 pcs Concrete insert /Plastic dowel
  • 4 pcs T Bolt HS32/26-M22
  • 4 pcs Nut M22
  • 4 pcs Flat washer
  • 4 pcs KPO clamp

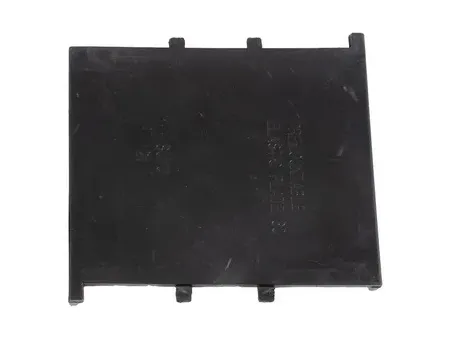

  • 2pcs Guide plate
  • 2 pcs Rail pad
  • 2 pcs Base Plate
Technical Parameters
Part name Pieces required Material Type Note
4 Q235 KPO3, KPO6, KPO9 Standard: DIN5906
8 Grade 4.6: Q235 Grade 5.6: 35# Grade 8.8: 45# M24×150mm M24 ×160mm M24 ×180mm Standard: ISO898-1, UIC864-1 and NF F500-50
4 Grade4.6: Q235 Grade5.6: 35# Grade8.8: 45# HS26, HS32 Diameter: 22mm or 24mm. Length: 55mm, 65mm, 75mm, 90mm
4 Grade 5: 35# Grade 8: 45# As ordered Standard: DIN985
8 65Mn As ordered Standard: UIC864-3
2 Casting iron QT500-7, QT450-10, or forging low carbon steel or high carbon steel; UIC54,UIC60, 50kg rail, 60kg rail,S49 in ordered size Standard: UIC864-6
