Q11 Mechanical Sheet Metal Shear
Request a Quote
Q11 mechanical sheet metal shear featuring single-side mechanical strive makes it easy to operate. It's widely used in motor, electrical, automobile industries and all shops of other industries where sheet metal fabrication is required.
- 3x1200
- 4x2000
- 6x2500
- 8x2500
Features
- The shearing machine structure is simply easy to operate and easy to maintain. It is used to shear steel sheets in a straight line.
- The machine is controlled using a foot pedal, and it can shear sheets in a single process or continuous processes. The mechanical shearing machine's shearing rate is high, at 2-3 times higher than the hydraulic pendulum shearing machine.
- The machine blade is square, and comes with 4 blades for use in shearing, thus prolonging the service life of each blade.

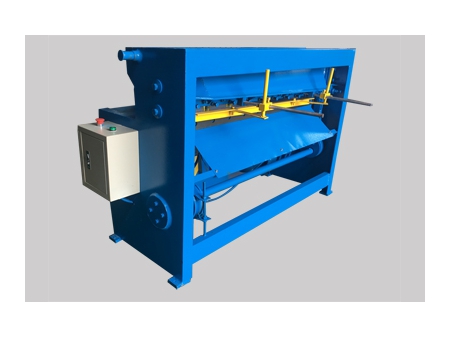

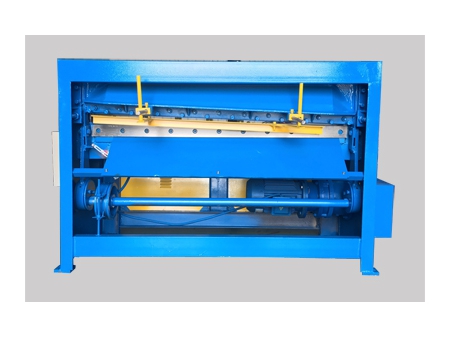

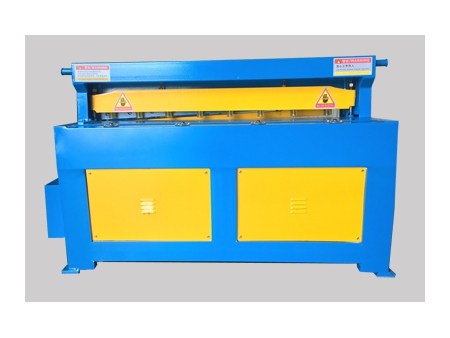

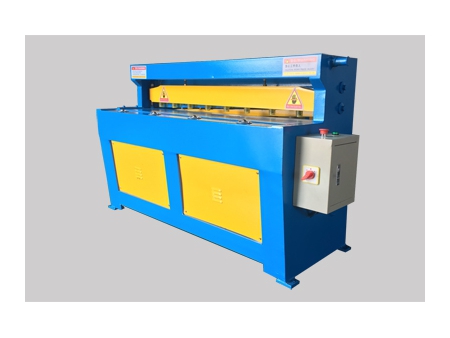

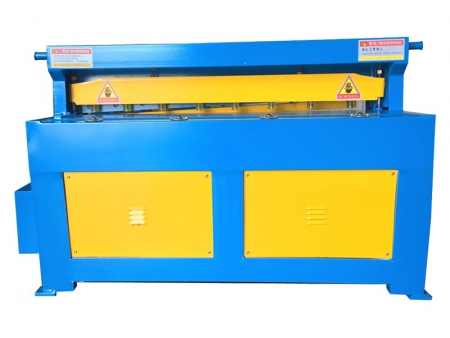

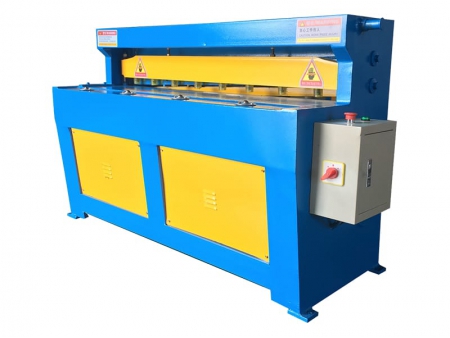

Gallery
Technical Parameters
Model | Max cutting Thickness (mm) | Max cutting Width (mm) | No. ofstrokes (min-1) | Shearing angle (°) | Back gaugerange (mm) | Power of main motor (kW) | Overall dimension (mm) | |
3x1200 | 3 | 1200 | 20 | 2°30' | 350 | 3 | 2015x1500x1300 | |
3x1300 | 3 | 1300 | 20 | 2°30' | 350 | 3 | 2115x1500x1300 | |
3x1500 | 3 | 1500 | 20 | 2°30' | 350 | 3 | 2515x1500x1300 | |
4x2000 | 4 | 2000 | 20 | 1°30' | 500 | 5.5 | 3200x1500x1610 | |
4x2500 | 4 | 2500 | 20 | 1°30' | 500 | 5.5 | 3580x1300x1610 | |
4x3200 | 4 | 3200 | 20 | 1°30' | 600 | 7.5 | 4380x1900x1600 | |
4x4000 | 4 | 4000 | 20 | 2° | 600 | 7.5 | 4650x1820x1700 | |
6.3x2000 | 6.3 | 2000 | 24 | 2° | 500 | 7.5 | 3180x1765x1550 | |
8x2000 | 8 | 2000 | 24 | 2° | 500 | 11 | 3180x1765x1550 | |
6x2500 | 6 | 2500 | 24 | 2° | 500 | 7.5 | 3680x2200x2020 | |
6x3200 | 6 | 3200 | 20 | 1°45' | 650 | 7.5 | 4300x2250x2150 | |
8x2500 | 8 | 2500 | 20 | 2°30' | 650 | 11 | 3680x2250x2450 | |
13x2500 | 13 | 2500 | 30 | 3° | 700 | 15 | 3680x 2330x2500 | |
16x2500 | 16 | 2500 | 30 | 3° | 700 | 22 | 3680x 2800x2450 | |
20x2500 | 20 | 2500 | 25 | 3° | 750 | 30 | 3950x2800x2900 | |
25x2500 | 25 | 2500 | 23 | 3° | 750 | 45 | 3970x3120x 3445 |
