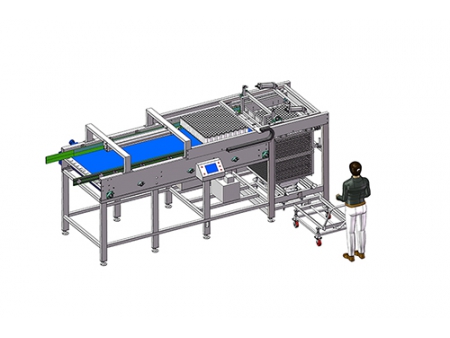

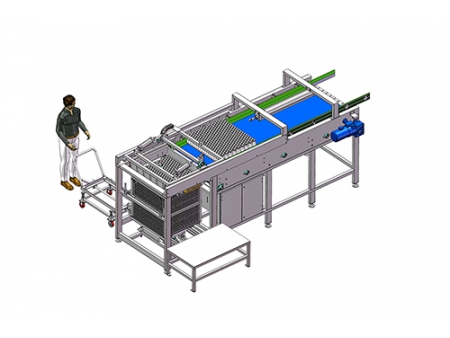

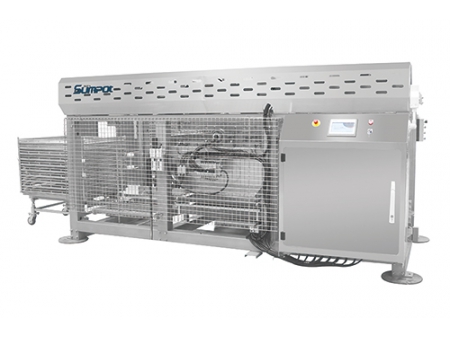

This semi-automatic pouch unloader is designed to effortlessly remove pouches from sterilized product packages. Mechanical fingers will separate the pouches one by one, turn them 180 degrees with the pouch turning device, and deliver them either to a conveyor belt for discharge or to a hopper for manual discharging. After the product is turned out, the manipulator will stack the empty pouches for manual supply to the pouch loader.

Application

All kinds of products that are suitable for sterilization pouches and have no requirement for the shape of the product.

Features
  • Extensive selection: Our pouch unloader offers a wide range of options, catering to diverse packaging requirements and enabling efficient unloading onto various pouch types.
  • Semi-automated pouch unloading: To initiate the unloading process, simply insert a single stack of pouches. The unloader takes care of the rest, swiftly separating, rotating, and stacking pouches until unloading is complete. The stack of empty pouches can then be manually removed.
  • Rapid unloading capability: Experience remarkable efficiency with our pouch unloader, capable of unloading up to 2-3 trays per minute at its peak performance, ensuring swift processing times.
  • Reliability and simplicity: Our pouch unloader boasts a straightforward and dependable design, significantly reducing the likelihood of any malfunctions or failures during operation.
  • Compact footprint, versatile setup: Despite requiring minimal floor space, our pouch unloader offers remarkable flexibility.
Technical Parameters
Model Suitable retort diameter Dimensions (mm) L*W*H Air pressure (Mpa) Weight (kg) Install power (kW) Voltage (V)
RZ01-10
1000mm 3300*2160*1880 0.8 1250 3 Customized
RZ01-12
1200mm 3300*2260*1980 0.8 1350 3 Customized
RZ01-14
1400mm 3500*2410*2150 0.8 1500 4 Customized
RZ01-15
1500mm 3500*2190*2200 0.8 1700 4 Customized
