Semi-Automatic Pouch Loader
Request a Quote

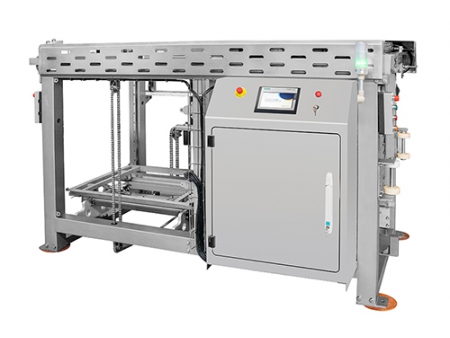

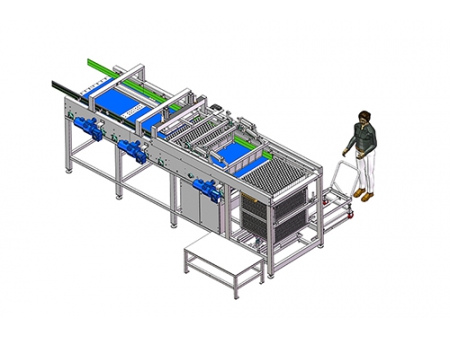

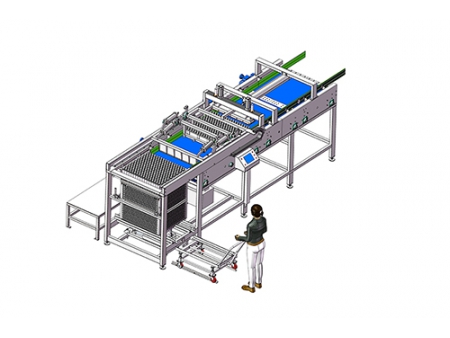

This semi-automatic pouch loader is designed to load foods into pouches before sterilization. The conveyor belt delivers the packaged products to the upper part of the empty sterilization pouch of the pouch loader, which allows the products to fall into the pouch. An operator can manually spread or arrange the products orderly in the pouch. A button controls the pouch-turning machine, which then transports the empty pouches through the manipulator. The loaded pouches are automatically stacked into a pile and manually pushed into the pot for sterilization.
Applications: All products suitable for sterilization pouch
Features
- We offer a wide selection of packages that can be used for packaging a vast array of products.
- High automation degree. With the exception of spreading and arranging products manually, all other processes such as disassembling, moving, and stacking are completed automatically.
- High loading efficiency, allowing for pouches to be loaded at speeds up to 2-3 trays per minute.
- The structure of the loader is straightforward, providing reliable support and a low possibility of malfunctions.
- The floor area is limited and there is flexibility in regards to the installation space.
Technical Parameters
| Model | Suitable retort diameter | Dimensions (mm) L*W*H | Air pressure (Mpa) | Weight (kg) | Install power (kW) | Voltage (V) |
RZ1-10 | 1000mm | 2380*1850*1330 | 0.8 | 950 | 2.5 | Customized |
RZ1-12 | 1200mm | 2380*1990*1430 | 0.8 | 1000 | 2.5 | Customized |
RZ1-14 | 1400mm | 2580*2150*1580 | 0.8 | 1150 | 3.5 | Customized |
RZ1-15 | 1500mm | 2580*2190*1630 | 0.8 | 1300 | 3.5 | Customized |
