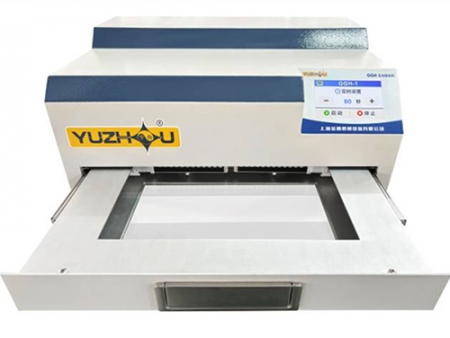

GGH-1 UV Mounting Press

GGH-1 UV Mounting Press
GGH-1 UV Mounting Press
GGH-1 UV Mounting Press
GGH-1 UV Mounting Press
Request a Quote

Metallographic Mounting Press

Engineered for precision and efficiency, the UV mounting press leverages UV light to rapidly cure resin, producing high-quality metallographic samples. By pouring resin into a specialized mold and placing it in the work chamber, transparent mounted samples can be achieved in just 60 seconds. This technology ensures quick preparation without bubbles, meeting rigorous quality standards.

Request a quote
Features
  • Achieve fully transparent mounting in only 60 seconds, significantly boosting productivity in sample preparation workflows
  • Designed to accommodate up to 20 samples with a 30mm diameter each, ideal for high-throughput laboratory environments
  • The aluminum alloy structure ensures longevity and ease of maintenance, providing a durable solution for regular use
  • Dual UV LED light sources offer comprehensive 360-degree illumination, eliminating shadows and ensuring consistent curing
  • Adjustable curing times allow for minimal shrinkage, enhancing the reliability of mounted samples
  • With an initial temperature of 22°C, the curing process reaches approximately 70°C, optimizing resin properties
  • Post-cured resin achieves a hardness of approximately 84-86 Shore D, ensuring strong and durable samples
  • One liter of resin can produce between 55 and 65 samples of 30mm, making the process cost-effective
Details

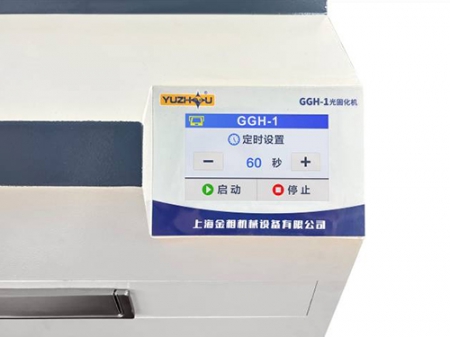

  • Operation Interface
  • Floor Stand

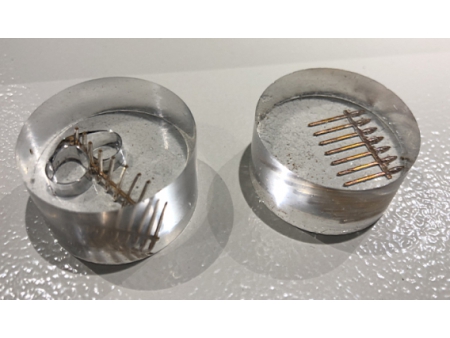

Samples
Technical Data
Model GGH-1
Work Chamber Dimensions 240×150×37mm, accommodating up to 20 samples (⌀30mm)
UV Light Dual light source UV 365 405nm
Exposure Time 0-999s
Power Supply 220V, 50Hz
Dimensions 270×230×320mm
Net Weight 22kg
