ZXQ-1 Hot Mounting Press, Mechanical Type
Request a Quote
Metallographic Compression Mounting Press
ZXQ-1 Hot mounting press features automatic mechanic compression and the mounting process is automatically controlled by programs to achieve one-button operation of heating, pressure loading, holding, cooling and unloading. This requires no operators on duty, thus saving labor. In addition, the metallographic compression mounting press comes with sound and light alarm functions.
Request a quote
Features
- This metallographic compression mounting press adopts gear motor for stable pressure.
- Water cooling system is equipped for fast mounting, easy operation and stable performance. It is ideal equipment for mounting samples.

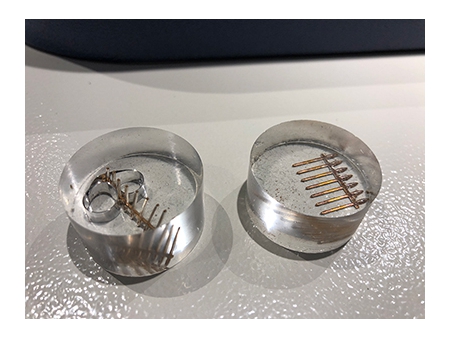

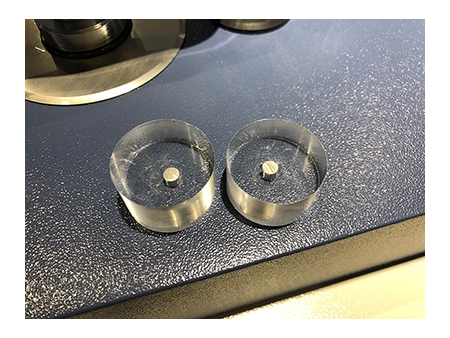

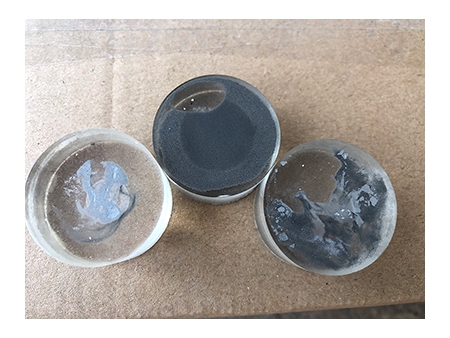

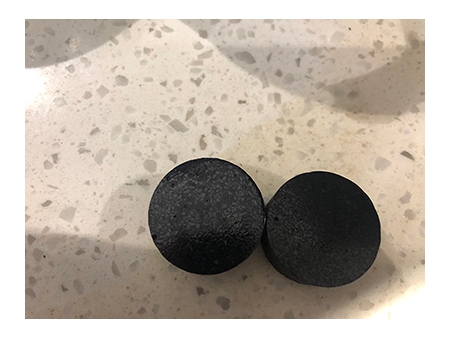

Samples
Specifications
- Mounting mould size: Ф25mm, Ф30mm, Ф40mm (choose one)
- Cavity height: 115mm, effective height is 60mm
- Heating power: Ф25mm/Ф30mm: 1.2kW; Ф40mm: 1.6kW
- Pressure: mechanical loading, 130bar
- Electromotor power: 120W
- Heating temperature: 50~180℃
- Heat time: 0~8min
- Hold time: 30s~60min
- Cooling time: 0~8min
- Cooling method: external water source
- Dimensions: 463×402×430mm
- Net weight: 50kg
