YZXQ-3 Hot Mounting Press with Two Cylinders, Hydraulic Type
Request a Quote
Metallographic Compression Mounting Press
YZXQ-3 Hot mounting press is an advanced, automatic, hydraulic water-cooled, dual cylinder and programmable equipment. The sample mounting process is automatically controlled by single chip, coming with one-button operation of heating, pressure loading, holding, cooling, unloading. This requires no operators on duty. Besides, the metallographic compression mounting press features sound and light alarm functions.
Request a quote
Features
- This metallographic compression mounting press adopts hydraulic pump for higher pressure, enabling the mounted sample more compact.

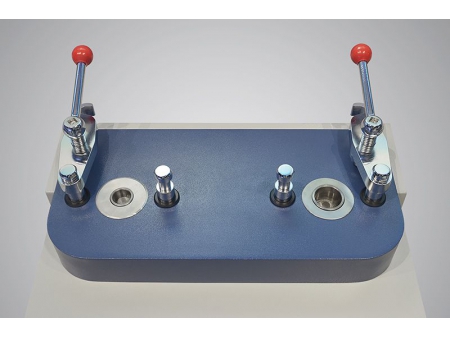

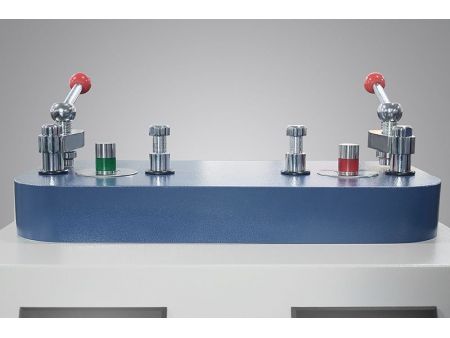

- This hydraulic mounting press features two cylinders, which can be used individually, and the mould specification is optional. Mounting units are controlled and operated separately.
- Unique heat and cold separation design makes the operation safer and more stable.

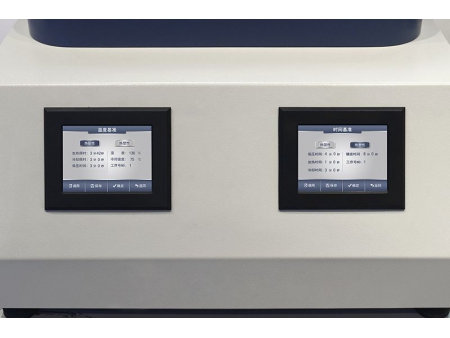

- High-definition touch screen displays the real-time pressure and temperature.
- Water cooling system is equipped for fast mounting, making the sample preparation easier and more labor-saving. This also enables the mounting quality better and more stable.

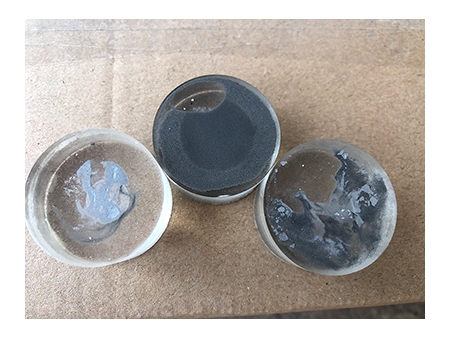

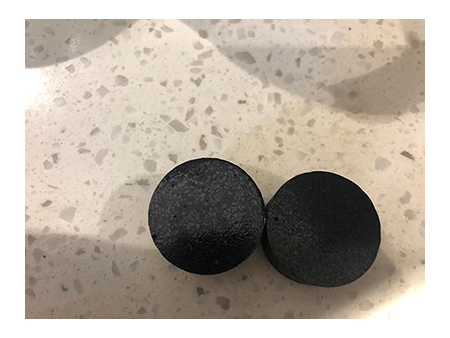

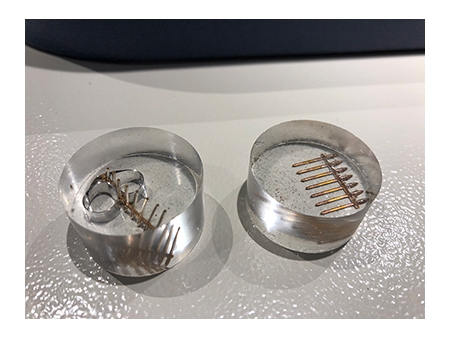

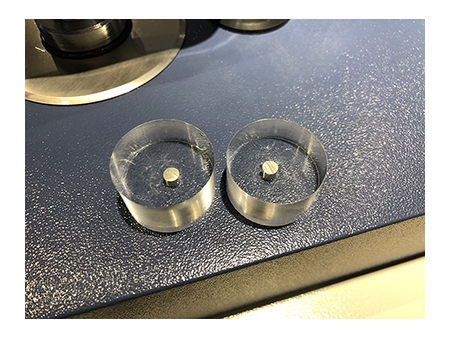

Samples
Specifications
- Mounting mould size: Ф25mm, Ф30mm, Ф40mm (choose two)
- Cavity height: 108mm, effective height is 60mm
- Heating power: Ф25mm/Ф30mm: 1.8kW; Ф40mm: 2.4kW
- Pressure: adjustable, and the default is 150bar, equivalent to 15Mpa or 150kgf/cm2
- Heating temperature: 0~255℃
- Hold time: 0~99min
- Total time: 6min 30s for Ф30mm
- Cooling method: external water source
- Dimensions: 650×600×550mm
- Net weight: 105kg
