Metallographic Compression Mounting Press

YZXQ-1A hot mounting press is an advanced, automatic, hydraulic water-cooled equipment. The sample mounting process is automatically controlled by single chip, coming with one-button operation of heating, pressure loading, holding, cooling, unloading. This requires no operators on duty. Besides, the metallographic compression mounting press features sound and light alarm functions.

Request a quote
Features
  • This metallographic compression mounting press adopts hydraulic pump for higher pressure, making the mounted sample more compact.
  • The cavity is lengthened to allow the operation of mounting two samples at one time by using the middle block.
  • Unique heat and cold separation design makes the operation safer and more stable.

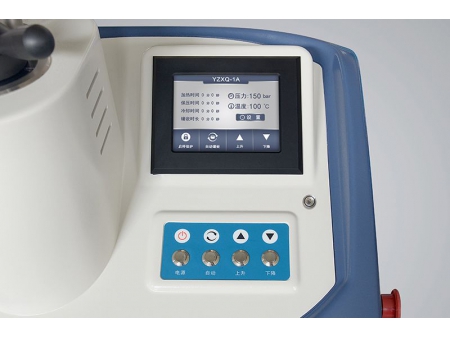

  • Dual control comes with high resolution touch screen and physical start button. YZXQ-1A mounting press can store operator-created mounting programs, easy to access.
  • Water cooling system is equipped for fast mounting. It takes only 6 minutes to complete a task of mounting two samples at one time, making the sample preparation easier and more labor-saving. This also enables the mounting quality better and more stable.

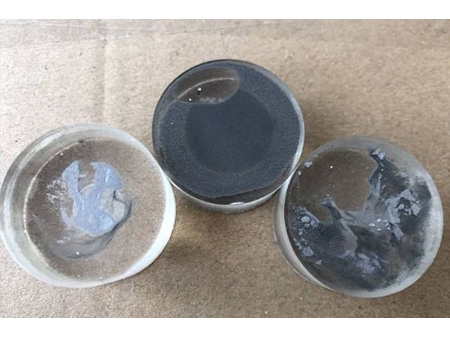

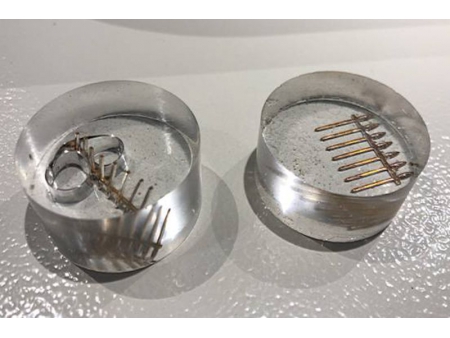

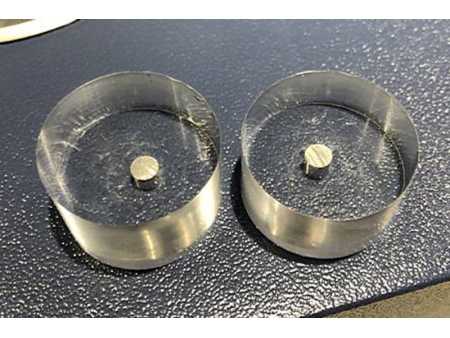

Hot Mounting Examples
Specifications
  • Mounting mould size: Ф25mm, Ф30mm, Ф40mm (choose one)
  • Cavity height: 140mm, effective height is 85mm, can make two samples at one time
  • Heating power: Ф25mm/Ф30mm: 1.8kW; Ф40mm: 2.4kW
  • Pressure: 50~200bar (The default is 150bar, equivalent to 15Mpa or 150kgf/cm2)
  • Heating temperature: 50~180℃
  • Heat time: 0~5 min
  • Hold time: 30s~60min
  • Cooling time: 0~8min
  • Total time: 6min 30s for Ф30mm

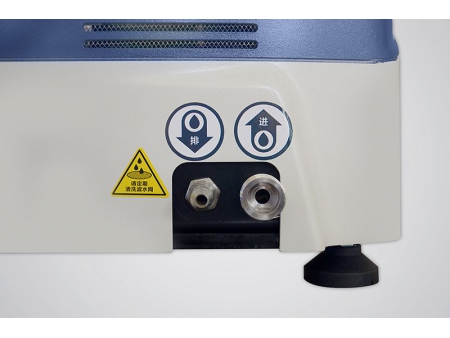

  • Cooling method: external water source
  • Dimensions: 530×510×480mm (Top closure opening height: 85mm)
  • Net weight: 60kg
