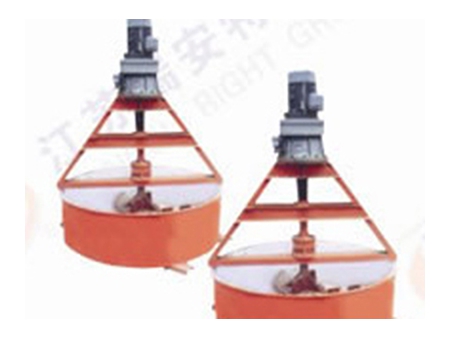

Vertical Pan Mixer

Request a Quote

View All: http://fertilizer-granulators.com/2-4-vertical-pan-mixer.html

Industrial mixing machine for handling fertilizers, animal feeds and other powders

Achieving consistent blending is crucial for industries handling fertilizers, animal feeds, and other powdered materials. The vertical pan mixers we offer address this need as it is equipped with rotating blades attached to a central shaft. These blades gently lift the materials from the bottom and allow them to disperse evenly as they fall, ensuring a smooth and even mixture. Its versatility makes it a valuable tool, not only for fertilizers and feed but also for blending various grains and other powdered materials, making it a versatile mixing tool for various industries.

Specifications

Model	Diameter (mm)	Production capacity (t/h)	Rev. (r/min)	Motor
Model	Diameter (mm)	Production capacity (t/h)	Rev. (r/min)	Model	Power (kW)
L1800	1800	8	11	BLY3322	5.5
L2000	2000	10	11	BLY3322	7.5
L2200	2200	12	11	BLY2927	11
L2500	2500	14	11	BLY3927	11
L3200	3200	18	11	BLY55-87	15

Features

The interior of the pan is lined with polypropylene or stainless-steel plates, making it resistant to corrosion and wear, while preventing material adhesion.
This mixer is suitable for a wide range of materials, whether they are dry or wet granules or powders, offering flexibility for various applications.
With a short mixing cycle and high efficiency, the vertical pan mixer ensures uniform blending in minimal time.
