YJF 48 C-Frame Shaded Pole Motor Manufacturer

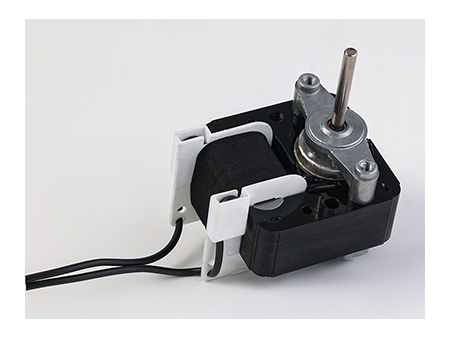

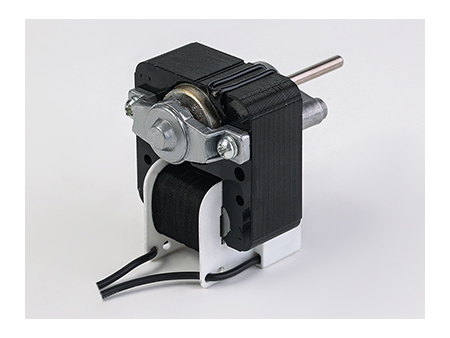

YJF 48 C-Frame Shaded Pole Motor

Request a Quote

View All: http://ecmotorsfactory.com/2-4-yj-48-c-frame-shaded-pole-motor.html

YJF 48 C-Frame Shaded Pole Motor is a 2 pole 3 speed motor that will run on 100-120V AC or 220-240V AC. It is widely used in ovens, fans and other home appliances.

We also offer custom services like motor design and construction, optional configuration and logo printing.

Diagram

Certifications

Application

YJF48 shaded pole motor is widely used in a variety of small household appliances, for example mini oven, air fryer, fireplace, heater fan, exhaust fan, humidifier etc.

Parameters

Type	Voltage/Freq. VAC	Current A	Power W	Speed r/min	Rotation	Shaft dia mm	Stator Thickness (T) mm	Shaft Extension (B) mm	Certificate
YJF48-10 (E/H)	220-240V 50Hz	≤0.15	≤15	≤2750	CW/CCW	4/5	10	< 68	CE, CCC
	110-120V 60Hz	≤0.30	≤15	≤3400					UL
	230/127V 50/60Hz	≤0.30	≤15	≤3400
YJF48-12 (E/H)	220-240V 50Hz	≤0.18	≤18	≤2850	CW/CCW	4/5	13	< 68	CE, CCC
	110-120V 60Hz	≤0.36	≤18	≤3450					UL
	230/127V 50/60Hz	≤0.36	≤18	≤3450
YJF48-15 (E/H)	220-240V 50Hz	≤0.20	≤20	≤2850	CW/CCW	4/5	15	< 68	CE,CCC
	110-120V 60Hz	≤0.40	≤20	≤3500					UL
	230/127V 50/60Hz	≤0.40	≤20	≤3500
	12V 50Hz	≤2.10	≤20	≤2850
YJF48-20 (E/H)	220-240V 50Hz	≤0.25	≤25	≤2900	CW/CCW	4/5	20	< 68	CE,CCC
	110-120V 60Hz	≤0.50	≤25	≤3550					UL
	230/127V 50/60Hz	≤0.50	≤25	≤3550
	12V 50Hz	≤2.20	≤25	≤2900
YJF48-25 (E/H)	220-240V 50Hz	≤0.30	≤30	≤2950	CW/CCW	4/5	25	< 68	CE,CCC
	110-120V 60Hz	≤0.60	≤30	≤3580					UL
	230/127V 50/60Hz	≤0.60	≤30	≤3580
	12V 50Hz	≤2.30	≤30	≤2950
