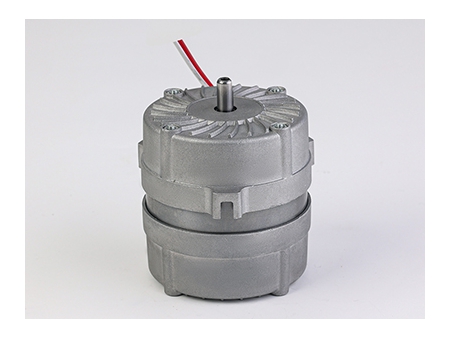

YJF 80 Shaded Pole Motor
Request a Quote
YJF 80 shaded pole motor is a 4 pole 3 speed motor that will run on 100-120V AC or 220-240V AC. It is widely used in ventilation systems such as ventilating fans, exhaust fans and pipeline fans.
We also offer custom services like motor design and construction, optional configuration and logo printing.
Diagram
Certifications
Application
YJ80(4P) shaded pole motor is widely used in industrial fan s of various sizes installed in the wall.
Parameters
| Type | Voltage/Freq. VAC | Current A | Power W | Speed r/min | Rotation | Shaft dia mm | Stator Thickness (T) mm | Shaft Extension (B) mm | Certificate |
| 220-240V 50Hz | ≤0.33 | ≤45 | ≤1450 | CW/CCW | 6/7/8 | 20 | < 68 | CE, CCC | |
| 110-120V 60Hz | ≤0.66 | ≤45 | ≤1750 | ||||||
| 12V 50Hz | ≤3.00 | ≤45 | ≤1450 | ||||||
| 220-240V 50Hz | ≤0.40 | ≤55 | ≤1450 | CW/CCW | 6/7/8 | 25 | < 68 | CE, CCC | |
| 110-120V 60Hz | ≤0.80 | ≤55 | ≤1750 | ||||||
| 12V 50Hz | ≤3.30 | ≤55 | ≤1450 | ||||||
| 220-240V 50Hz | ≤0.65 | ≤80 | ≤1450 | CW/CCW | 6/7/8 | 35 | < 68 | CE, CCC | |
| 110-120V 60Hz | ≤1.30 | ≤80 | ≤1750 | ||||||
| 12V 50Hz | ≤3.80 | ≤80 | ≤1450 |
