Aluminum/PI Shielding Tape
Request a Quote

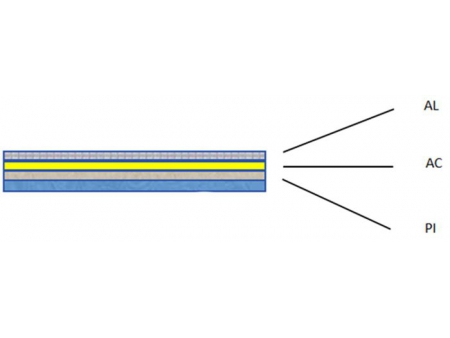

Polyimide film laminated aluminum foil
- Total thickness: (10μm to over 100μm) ±3μm
- PI layer thickness: (≥2μm) aluminum layer (≥4μm)
- Tensile strength: ≥30Mpa
- Width: 0.5mm to 990mm
- Elongation: ≥30%Min
- Packaging: rolls(D30), sheets, 76mm removable rolls, inverted cone packaging
Aluminum/PI shielding tapes reflect heat radiation, ensuring stable operating temperatures for critical hardware, which are excellent insulators and fire-resistant materials. PI plastic, one of the most heat-resistant engineering plastics, can endure high temperatures, exceptional mechanical properties, fatigue resistance, flame resistance, dimensional stability, good electrical properties, low molding shrinkage, and resistance to oil, general acids, and organic solvents. It is not alkali-resistant but offers excellent friction and wear resistance.
Features
- Halogen-free flame retardant (no halogens and antimony)
- Flame retardant adjustment
- Thermal insulation
- Strong adhesion: acrylic adhesive
- Silicone gas-free
Applications
- Thin and heat-resistant parts for fastening and electrical insulation
- Joining TAB (tape automated bonding), heat-resistant films, etc
- Flame retardant material
- Thermal insulation material
- Data transmission cable
- EMI shielding
