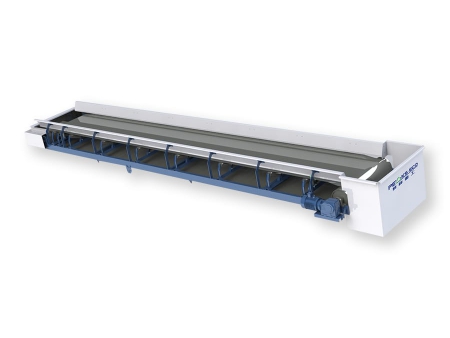

Plate Link Conveyor
Request a Quote
Plate link conveyor is primarily used for feeding waste materials and is typically paired with crushers to ensure uniform material delivery. For easy maintenance and cleaning, plate link conveyor requires available space around the lower perimeter of the feeder hopper.
Widely applied in industries such as non-ferrous metals, mining, cement, and municipal waste treatment, the plate link conveyor is suitable for continuously and evenly conveying materials along horizontal or inclined sections to machinery, hoppers, funnels, or other containers. As a bulk material conveying device, it converts intermittent feeding into continuous feeding, offering strong traction, long service life, and easy maintenance.
Custom Options
- Size
- Motor configuration
Features
- Feeding speed and system capacity are both increased by up to 20%
- Suitable for automated and unmanned processing and ensures uninterrupted and uniform feeding, maximizing the sorting and screening efficiency
- Good compatibility with a wide range of existing equipment types
- The traction force of the drive roller can reach 60HP
- Convenient and durable feed hopper to prevent the overflowing of waste
Technical Specifications
Capacity | ≥30m³/h |
Conveyor load capacity | ≥28t/h |
Chain plate width | 2.2m |
Belt cross section height | 150mm |
Conveyor length | Approx.7.5m (actual length depends on layout drawing) |
Installation angle | Approx. 0° (actual angle depends on layout drawing) |
Conveying speed | 0-0.1m/s (continuously adjustable, variable frequency speed control) |
Working mode | Continuous or intermittent operation |
Power supply | 380V/50Hz/3-phase 5-wire |
Drive motor power | 15kW |
Leveling motor power | 7.5kW |
Leveling roller diameter | 850mm |
