High-Lift Garbage Compression Station

High-Lift Garbage Compression Station
High-Lift Garbage Compression Station
High-Lift Garbage Compression Station
Request a Quote

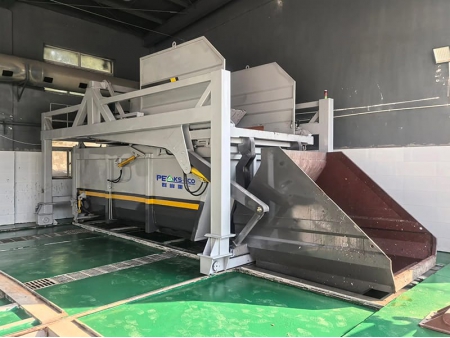

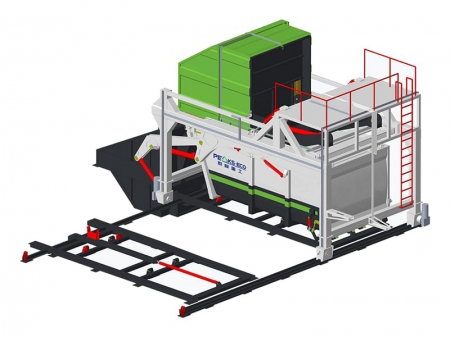

Our garbage compression station adopts a highly efficient waste handling solution that combines horizontal compression technology with hook-lift truck hoists, optimizing both performance and operational convenience. The system features a two-level layout—with the compactor installed on the first level and the transfer vehicle unloading through a second-level discharge port—maximizing spatial efficiency and workflow.

To ensure optimal working conditions and operational safety, the compression station is also equipped with a suite of advanced auxiliary systems, including a centralized control system, real-time monitoring system, exhaust and atomized deodorization systems, and a high-pressure cleaning unit. These features not only enhance environmental compliance but also greatly improve the cleanliness and comfort of the transfer station workspace.

Technical Specifications
Pusher head Brinell hardness 450HB
Pusher head tensile strength 1320N/mm³
Processing capacity 40t/h
Garbage volume per compression cycle 4m³
System pressure 25Mpa
Strong pushing pressure 21Mpa
Max. compression force 500kN
Max. compression stroke 3600mm
Compression cycle time 34.6S
Compressed garbage density 0.8t/m³
Compression chamber volume 4m³
Installed power 22kW
Garbage box volume 22m³
Overall dimensions 6100×2500×2500mm
