Auto Cream Filling and Capping Machine, Cream Filler, Liquid Filling Machine, Automatic Cream Filling Sealing and Capping Line, Cream Packaging Line

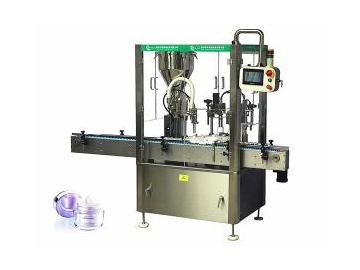

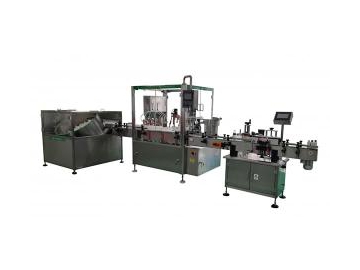

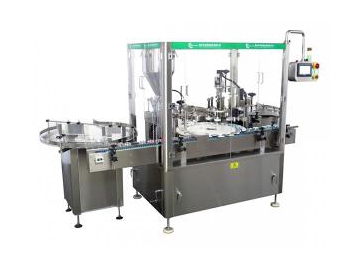

This automatic cream filling sealing and capping machinery adopts the advanced photoelectric control technique for high reliability and accurate filling. It is able to feed the spacers and tighten the caps automatically. A touch screen is equipped for convenient operation. All of the features talked above have made it a best choice for auto cream filling lines in household chemical industry. Besides, it can be used cooperatively with SHP bottle feeding machine.

Features
1. This auto filling, sealing and capping line for cream features unique design, compact structure, and double-arm cap fetching method

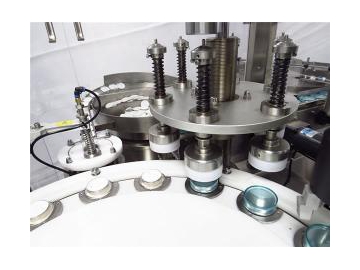

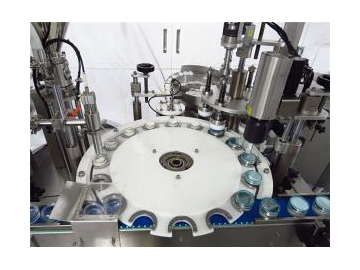

2. Rotary filling mechanism is adopted
3. High filling efficiency

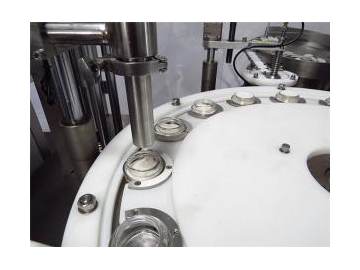

4. The filling nozzle will reach inner the bottle and get out immediately after filling
5. The conveyor is powered by brake motor and will stop feeding bottles during filling
6. Efficient filling device is employed to ensure that no material will be extruded when there is no bottle
7. Filled bottles counting

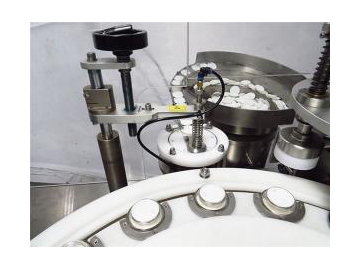

8. Auto spacer feeding and capping
9. Transparent panels and stainless steel frame are set for protecting this auto filling & capping line

Technical Parameters
Model ZHG-50(7) ZHG-50(15) ZHG-50(20)
Filling volume (ml) 15~70 30~150 50~200
Filling precision (ml) ±1.2 ±1.5 ±2.0
Filling capacity 30~60 bottles /min
Atmospheric pressure 0.2~0.4 MPa
Gas consumption 0.05m3/min
Power supply AC 220V, 50 /60Hz
Power 150W
Dimension (L×W×H) 2500×1500×1800 mm

Applications
This series of cream filling, sealing, and capping equipment is mainly applied in packaging cream, lotion, paste, ointment, cosmetic products, body care products, among cream materials.
