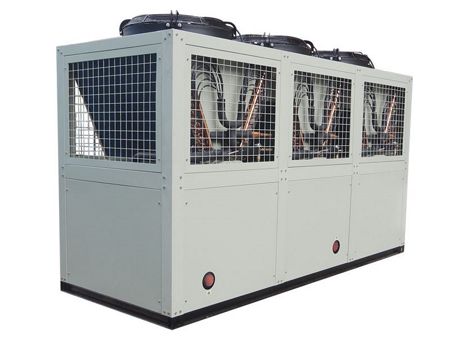

Our low temperature scroll compressor air source heat pump unit is capable of stable operation in temperatures between -25 °C and 35 °C. Drawing energy from the air, the unit functions while emitting no pollution, providing hot water at a temperature of 55 °C to meet any needs between 35 °C and 50 °C. Moreover, the unit comes with a heating feature and is suitable to be used with either direct air supply or floor radiation heating mode.

The module design concept offers versatility, enabling either a single machine or multiple modules to be employed depending on the requirements. This customizable approach is suitable for diverse premises that may have varying cooling and heating loads.

Specifications

Low Temperature Air Source Heat Pump with Scroll Compressor

Refrigerant: R410A
Power supply: 380V-3N-50Hz

Model Nominal cooling Nominal heating Capacity control % Refrigerant charge kg Condenser Evaporator Noise level dB(A) Shipping weight kg Operating weight kg
Cooling capacity kW Compressor power input kW Heating capacity kW Compressor power input kW Structure Air flow m3/h Power kW× unit Pipe diameter (inlet/outlet) in Water flow m3/h Water pressure drop kPa
20STB-V15CDHS4 39 12 25 10 0, 100 6 Copper tube with corrugated aluminum fins 16900 1.2*1 2″ 7 45 65 650 710
20STB-V30CDHS4 77 25 50 21 0, 50, 100 12 33800 1.2*2 13 55 70 1200 1290

Notes:

  • 1. Rated cooling capacity standard: air dry / wet bulb temperature 35℃ /24℃, chilled water inlet/outlet temperature 12℃ /7℃, fouling factor 0.088 ㎡•℃ /kW;
  • 2. Rated heating capacity standard: air dry / wet bulb temperature -12℃ /-14℃, hot water inlet/outlet temperature 36℃ /41℃;
  • 2. Chiller water temperature range: 5℃ ~20℃;
  • 4. Hot water temperature range: 35℃ ~45℃;
  • 5. Cooling ambient temperature range: 20℃ ~43℃, heating ambient temperature range: -25℃ ~43℃;
  • 6. Specifications and dimensions are subject to improvement without notice.
