Outdoor Underground LED Light Code AP781ET-XCET LED Lighting

Outdoor Underground LED Light  Code AP781ET-XCET LED Lighting
Outdoor Underground LED Light  Code AP781ET-XCET LED Lighting
Outdoor Underground LED Light  Code AP781ET-XCET LED Lighting
Outdoor Underground LED Light  Code AP781ET-XCET LED Lighting
Outdoor Underground LED Light  Code AP781ET-XCET LED Lighting
Outdoor Underground LED Light  Code AP781ET-XCET LED Lighting
Outdoor Underground LED Light  Code AP781ET-XCET LED Lighting
Request a Quote
Characteristics
  • Super static load 3000KGS, up to IP67, IK10 grade, suitable for various outdoor weather conditions.
  • Integrate RDM functions to facilitate early debugging and late maintenance of engineering installation and reduce costs.
Product Parameters
Model AP781XCET AP781ET
Input Voltage AC100~240V AC100~240V
Max. Power 46W 46W
Power Factor >0.9 >0.9
Lumen 1700lm 1515lm
Peak Beam Intensity 16000cd(16°) 19844cd(16°)
LED Quantity 12pcs RGBW 12pcs tri-color RGB
Optical Angle 16° 16°
DMX Dimming 0-100% 0-100%
RTCP DMX512 DMX512
Controllable Sections 2 2
Power Connection 3m cable(operation) 3m cable(operation)
Data Connection 3m cable(startup) 3m cable(startup)
IP Rating IP67, IK10 IP67, IK10
Operation Temperature -40°C~45°C (operation) -40°C~45°C (operation)
-20°C~45°C (startup) -20°C~45°C (startup)
Housing Material Die-casting aluminum Die-casting aluminum
Housing Color Black Black
Dimensions Ø320*146mm Ø320*146mm
Weight 8kg 8kg
Dimensions
Illumination Contours

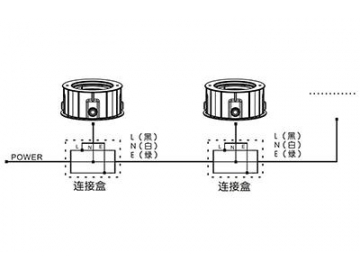

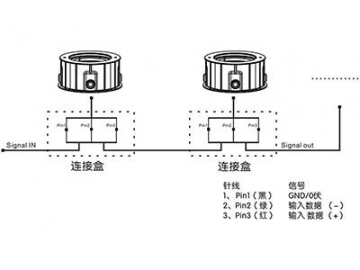

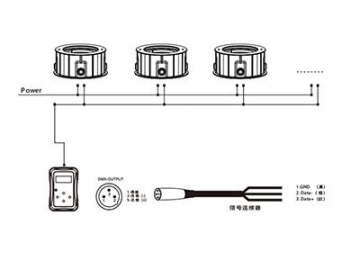

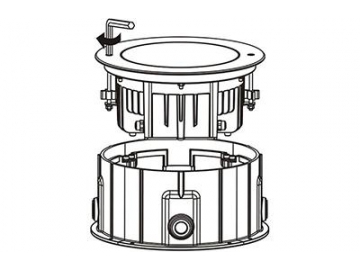

Installations
Optional Accessories

Anti-skid and dustproof mirror
