Skid Mounted LPG Filling Station
Refueling Equipment
Skid filling station for LPG filling of vehicles and gas cylinders

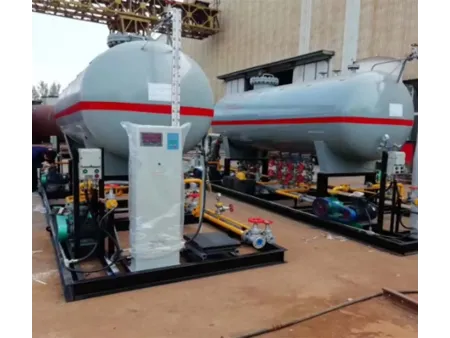

The skid mounted LPG filling station is an integrated modular system designed for the storage, transfer, and filling of liquefied petroleum gas (LPG) for vehicles and gas cylinders. Pre-assembled for immediate deployment, the filling system is ideal for use in areas requiring efficient, compact, and mobile LPG distribution.
Our skid unit includes a full set of essential components: LPG storage tank, unloading arm, hydrocarbon pump, electronic filling scale, piping valves, gas leak detectors, automatic control system, and electrical control panel. The entire system is mounted on a single skid base for ease of transport and setup.
This solution offers several key advantages:
- No on-site installation required
- Compact footprint and full-functionality
- Low investment and simple operation
It is widely applicable in LPG vehicle fueling, bottled gas refilling, and small-scale distribution sites, providing a safe, reliable, and cost-effective option for LPG handling.
- Unloading function: When an LPG tanker arrives on-site, the unloading arm connects to the system. With assistance from the hydrocarbon pump, LPG is transferred through liquid and vapor pipelines into the storage tank for secure containment.
- Filling function: LPG from the storage tank flows through the liquid-phase pipeline, driven by the pump, into the electronic filling scale, where cylinders are filled. Excess LPG is returned to the storage tank via a recirculation line, forming a closed loop system.
- Safety design: All storage tanks and pipelines are equipped with manual release valves and safety valves. Higher-tier models also include emergency shut-off valves and gas leak detectors, supporting both manual and automatic safety discharge modes.
- Electrical requirements: The hydrocarbon pump and electronic filling scale require power input at 380V and 220V, ensuring stable operation of the system.
| Model | Length | Width | Height | Weight |
| 5500mm | 1200mm | 2000mm | ～2500kg | |
| 6500mm | 1600mm | 2300mm | ～3500kg | |
| 9000mm | 1800mm | 2500mm | ～4700kg | |
| 10000mm | 2000mm | 2700mm | ～5900kg | |
| 11500mm | 2200mm | 2900mm | ～7500kg | |
| 13000mm | 2600mm | 3200mm | ～11500kg |

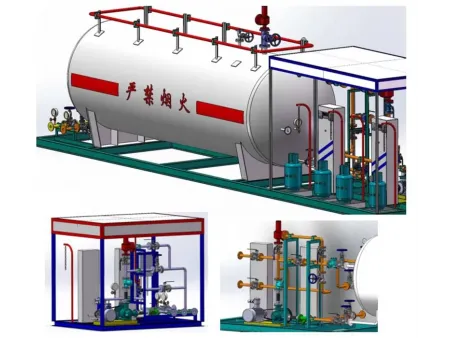

Technical drawings of the skid-mounted LPG filling station for reference
For specific customization requirements, please to discuss your application in detail.
