In the process of coal, petroleum and natural gas, a lot of H2S is produced. In order to protect environment and recover sulfur, Clause process is widely applied for processing acid gases containing H2S in industry.

According to many industrial applications of our sulfur recovery catalyst, the conversion rate of H2S generally is 65-75%. Second-stage Clause technology ensures a rate of 92-95% while three-stage Clause technology leads to a rate of more than 98%.

Technical Parameters of Sulfur Recovery Catalyst
Models PSR-1 PSR-21 PSR-31 PSR-41 PSR-51

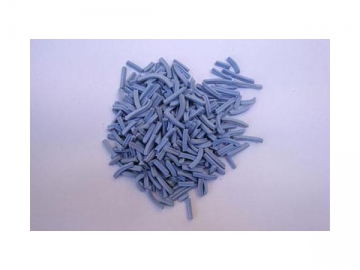

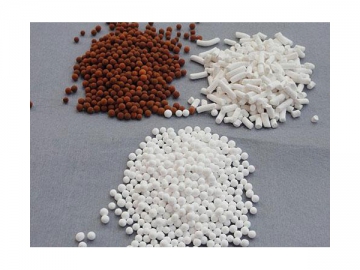

Size (mm) Φ 4-6, ball Φ 4-6, ball Φ 4 × 5-15, bar Φ 4-6, ball Φ 3 × 4-15, cloverleaf shape
Color White White White Red brown Blue grey
Compositions (%) AI2O3 ≥ 93Na2O3 ≤ 0.3 AI2O3 ≥ 85TiO2 > 3 TiO2 > 85 AI2O3 ≥ 80FeO ≥ 6 CoO > 2.5 MoO3 > 10
Bulk density (g/ml) 0.65-0.72 0.70-0.75 0.85-1.0 0.70-0.82 0.65-0.80
Specific surface area (m2/g) ≥ 300 ≥ 260 ≥ 100 ≥ 260 ≥ 200
Porosity (m/g) ≥ 0.4 ≥ 0.35


Crushing strength (N) ≥ 150 ≥ 130 ≥ 100 ≥ 150 ≥ 130
Catalyst attrition (%) ≤ 0.5 < 0.3 ≤ 1.0 ≤ 0.5 ≤ 1.0
Type Universal type Universal type Anti-salinization type Leakage protection type Hydrogenation type
