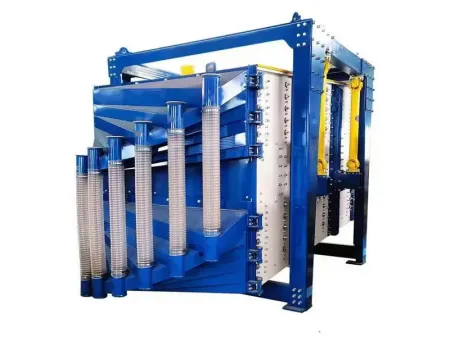

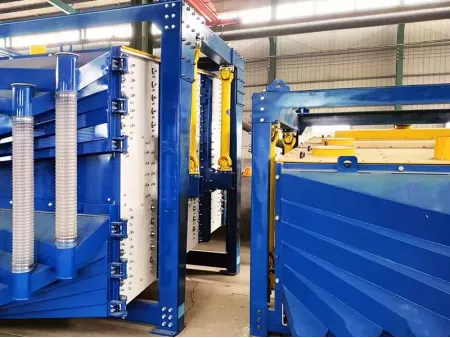

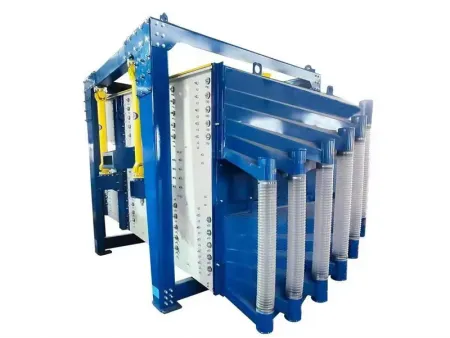

Gyratory Sifter
Request a Quote
Grading and classification of dry granular bulk materials
Gyratory sifters combine gentle gyratory and rotational movements, guiding powdery and granular materials through a precise curved pathway to enhance screening accuracy. Thanks to this gentle approach, materials retain their original properties, or can even be shaped if required. Main components such as the dust protection covers and vibration transmission discs are crafted through a single-step stamping process, offering added durability while reducing overall equipment weight. Additionally, a user-friendly slide-out screen tray simplifies routine screen replacements, reducing downtime significantly.
Applications
- Ideal for precise multi-layer separation of specialty mortars ranging from 10 to 140 mesh, ensuring consistent material quality for construction.
- Frequently employed in chemical processing, pharmaceuticals, food industries, and other applications demanding accurate classification of powders and granulates.
Specifications
| Model | Screen size (m) | Inclination angle (°) | Number of layers | Power (kW) | Frequency of rotation (r/min) | Stroke (mm) |
| 1.5×3.6 | 5.43±3 | 1-10 | 5.5 | 180-260 | 25-60 | |
| 1.8×3.6 | 5.43±3 | 5.5 | 180-260 | 25-60 | ||
| 2.0×3.6 | 5.43±3 | 7.5 | 180-260 | 25-60 | ||
| 2.0×4.0 | 5.43±3 | 7.5 | 180-260 | 25-60 |
Features
- Fully enclosed structure prevents dust escape, ensuring cleaner operations and complying with environmental regulations.
- Gentle yet stable screening movements minimize stress on materials, preserving their characteristics.

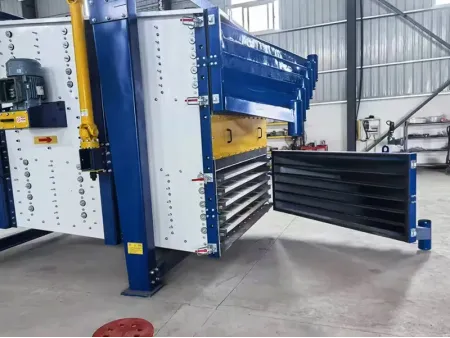

- User-friendly screen installation allows quick and easy replacements, extending screen life and reducing maintenance time.
- Electrostatic powder-coated finish offers enhanced protection against rust and abrasion, maintaining a clean and professional appearance.
- Manufactured from high-quality stainless steel for exceptional resistance to corrosion and acidic environments.
Related Case Study
Zhejiang Yifu New Building Materials Co., Ltd.
Industry: Building materials R&D and production
