Particle size reduction mill for milling, grinding and micronization

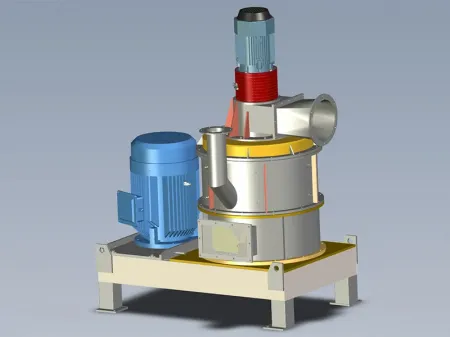

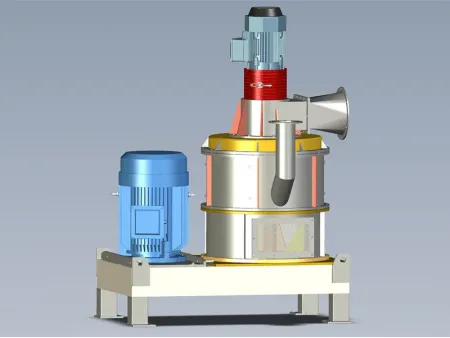

High-speed milling combined with precision grinding and micronization offers an efficient solution for producing fine powder products. The micro powder grinding mill integrates several systems, including feeding, grinding, classification, and an airflow system, ensuring an enhanced process from raw material input to finely milled output. With a combination of a rotating grinding plate, fixed gear teeth, and pressurized airflows, the mill repeatedly impacts, shears, and classifies the material until the desired powder consistency is achieved.

Specifications
Model Grinding diameter (mm) Grinding motor (kW) Classifying motor (kW) Air flow (m³/h) Production capacity (t/h)
CVFP600 600 30 5.5 2200 0.2-0.6
CVFP700 700 35-45 7.5 2800 0.3-0.8
CVFP850 850 55-75 11 4000 0.8-1.5
CVFP1000 1000 75-90 15 5500 1.0-2.0
CVFP1100 1100 110 18.5 6800 1.2-2.5
CVFP1200 1200 132 22 8000 1.5-3.0
CVFP1400 1400 160-200 30-37 11000 2.0-4.0
